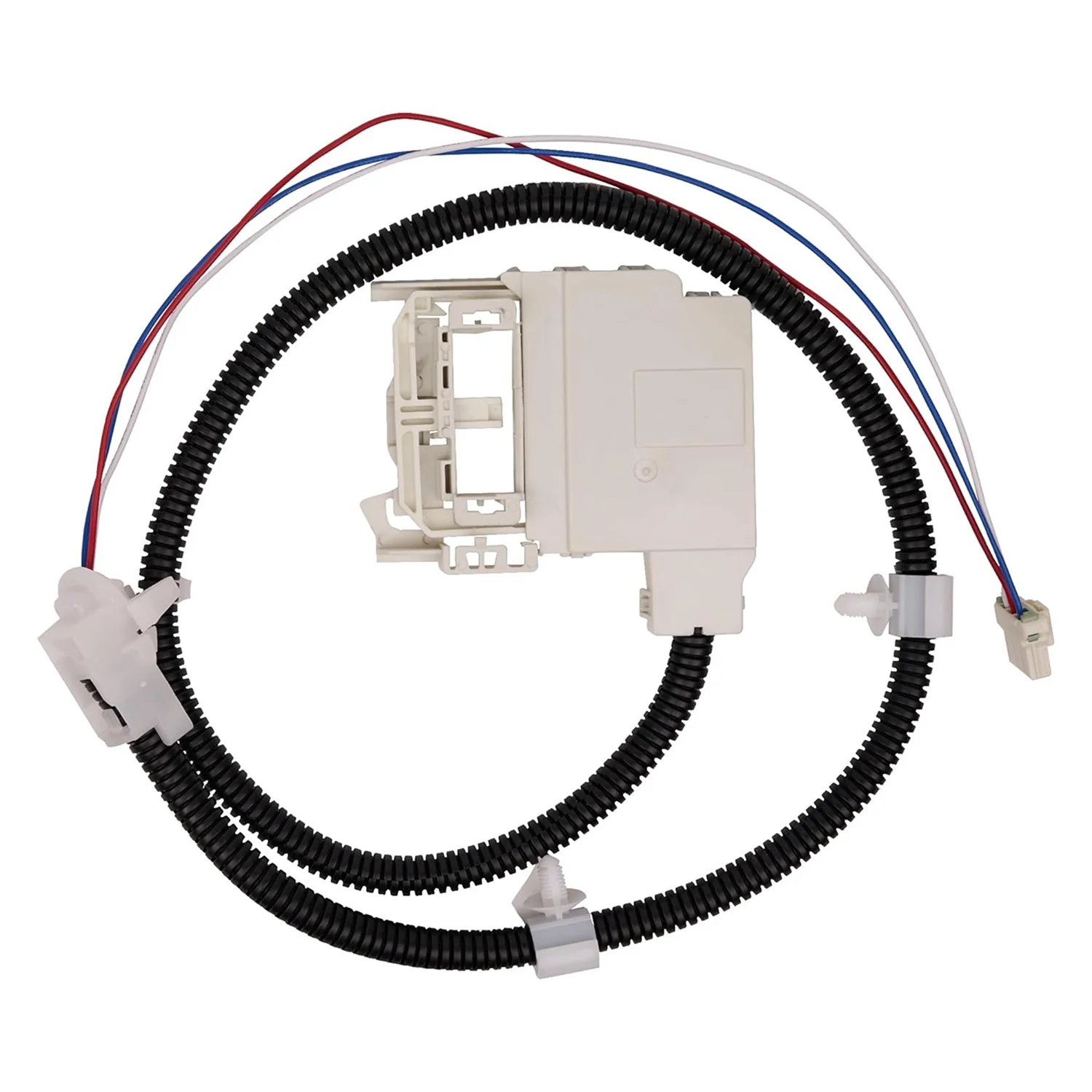

WH08X32657 WH08X31222 WH08X37937 Washer Lid Lock and Harness Kit - ForGE Washer

WH08X32657 Washer Lid Lock and Harness Assembly

Key Features

• Complete assembly includes the lid lock mechanism and a pre-wired 43-inch, 3-wire harness for direct connection to the control board.
• Acts as a critical safety switch by securely locking the top-load washer lid during high-speed spin and agitation cycles.
• Communicates electronically with the appliance control unit to prevent operation when the door is open, ensuring user safety.
• Manufactured with heavy-duty plastic and internal metal contacts for consistent, cycle-to-cycle reliability.

Replaces / Cross-Reference Part Numbers

• WH08X31222
• AP7033485
• PS16619254
• 4963152
• EAP16619254
• PD00070146
• WH08X37937
• WH01X27954
• WH01X26114
• WH01X24114

Compatibility & Fitment

• Compatible with standard top-load washing machines manufactured by General Electric (GE), Hotpoint, and RCA.
• Fits specific GE washer models including: GTW465ASN2WW, GTW220ACK7WW, GTW335ASN2WW, GTW490ACJ6WS, and GTW500ASN1WS.
• Fits additional GE washer models including: GTW525ACP0WB, GTW540ASP1WS, GTW685BSL2WS, GTW720BPN1DG, and GTW840CPN1DG.

When to Replace

• The washer refuses to start, fill, wash, drain, or spin when the start button is pressed.
• The lid fails to engage the lock mechanism when a new wash cycle is initiated.
• The lid remains securely locked and will not release after the wash cycle has completely finished.
• The appliance control panel continuously flashes a specific lid lock error code.

Installation Tips

• Disconnect the washing machine from the main power supply and shut off the water valves before beginning any repairs.
• Use a flat-blade putty knife to release the front spring clips under the main top panel, allowing the lid assembly to lift up.
• Take a photograph of the original wire harness routing path along the chassis to ensure the new harness is secured safely away from moving tub components.
• Unscrew the original lock mechanism, disconnect the harness from the control board, and route the new assembly into the exact same position.
