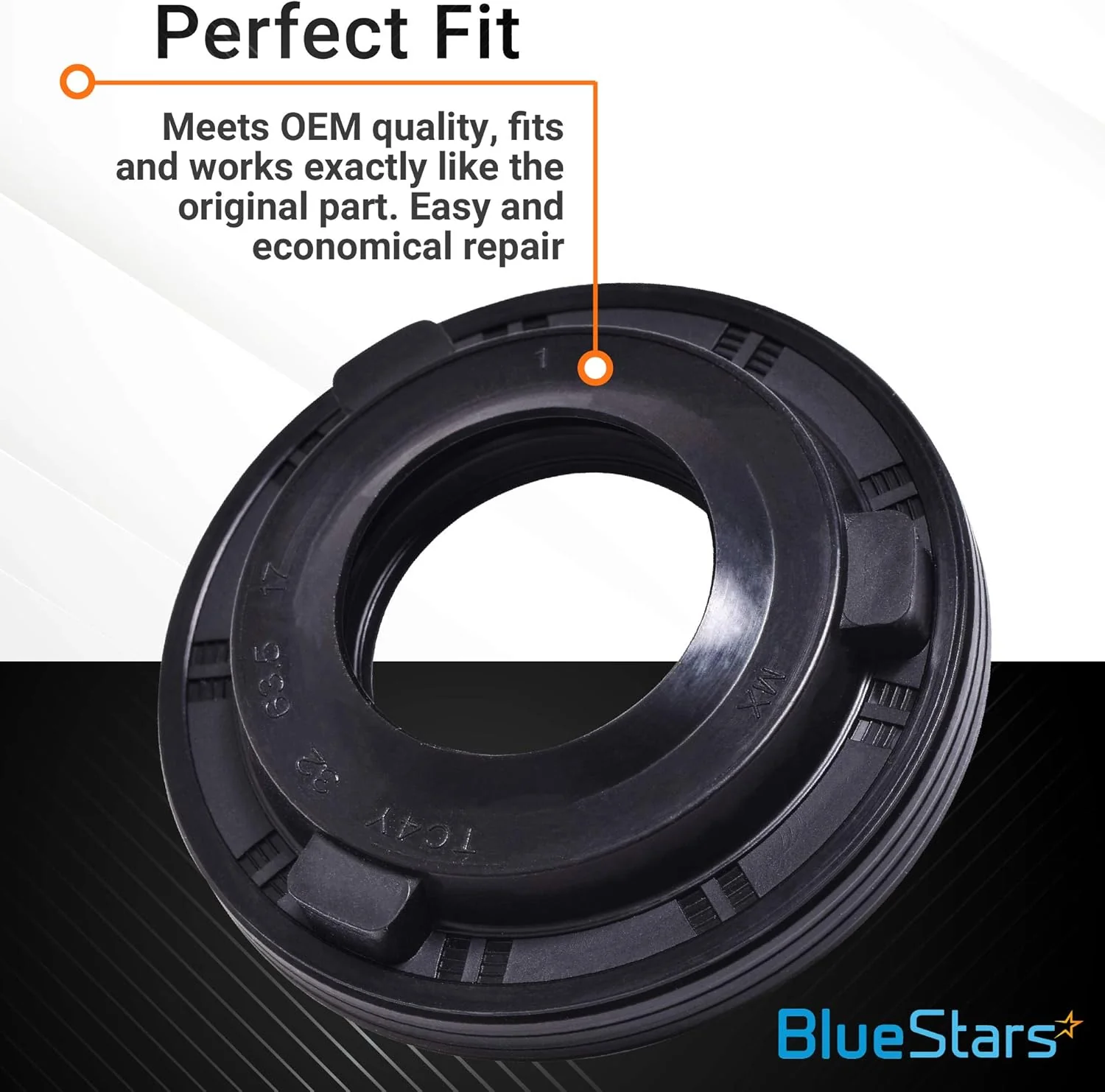

WH02X10383 Washer Tub Seal - For GE & Hotpoint Washers

WH02X10383 Washer Tub Seal

Key Features

• Creates a watertight seal around the transmission shaft to prevent leaks from the bottom of the tub.
• Addresses common washer symptoms including water leakage, unusual noises, and failure to spin.
• Dimensions: 0.625 in. (H) x 2.5 in. (W) x 2.5 in. (D)

Replaces / Cross-Reference Part Numbers

• AP5645738
• PS4704237
• WH02X10032
• WH2X10032
• WH02X1196
• WH2X1196
• 3029799

Compatibility & Fitment

• Designed for use with various General Electric (GE) top-load washing machine models.

When to Replace

• Water is leaking from the center area underneath the washing machine.
• Loud grinding or rumbling noises are present during the spin cycle.
• The washer agitates and pumps but will not spin.
• The existing seal is visibly cracked, worn, or damaged.

Installation Tips

• Disconnect the washer from all power and water supplies before beginning the installation.
• Thoroughly clean the tub and transmission shaft surfaces where the new seal will be installed.
• Ensure the seal is seated evenly and correctly to prevent future leaks.
• It is often recommended to inspect and replace the tub bearing at the same time as the seal.
