Igniter 3-20-677200 16 Fins Incoloy 800 Stainless

Igniter 3-20-677200 16 Fins Incoloy 800 Stainless

Key Features

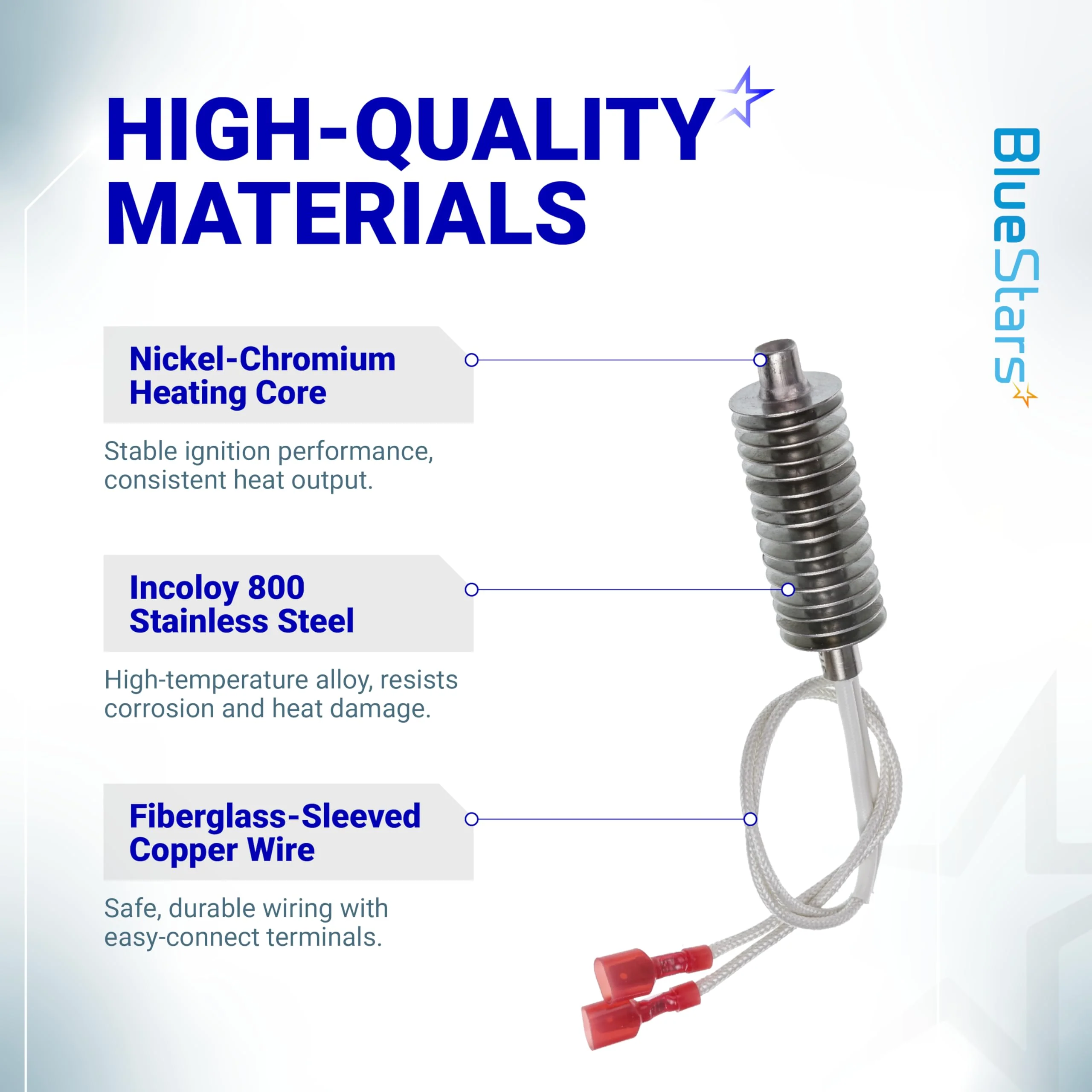

• Material: Incoloy 800 stainless steel construction
• Electrical Rating: 120V AC, 306W - 310W
• Design: 16-fin element
• Connection: Male spade connectors
• Dimensions: 11-inch wire length, 3.1-inch cartridge length

Replaces / Cross-Reference Part Numbers

• 3-20-677200
• XP3520

Compatibility & Fitment

• Fits select pellet and coal stove models from brands including Harman, Heatilator, and Eco-Choice.
• Known Model Fitment: Eco-Choice BA100, Eco-Choice BH105
• Note: Verify specifications and fin count of your original part before ordering.

When to Replace

• Stove fails to ignite pellets during the startup cycle.
• Ignition is intermittent or takes longer than usual.
• Visible damage, swelling, or cracking on the existing igniter element.
• The circuit breaker trips when the stove attempts to light.

Installation Tips

• Disconnect the appliance from its power source before servicing.
• Clean ash and debris from the igniter tube and burn pot area.
• Handle the new element with care to avoid damage.
• Ensure the igniter is fully seated in its housing to the correct depth.
• Confirm all electrical connections are secure.
