8066184 Dryer Motor Pulley 29 for Whirlpool Kenmore Maytag Dryers Washers

8066184 / WP8066184 Dryer Motor Drive Pulley (29" Cabinets)

Key Features

• Precision-Threaded Metal Construction: Manufactured from a high-durability, abrasion-resistant zinc alloy designed to lock securely onto the motor shaft, providing slip-free power transfer to the dryer drum.
• Multi-Groove Traction Surface: Features an optimized 4-rib/3-groove profile that perfectly matches the 341241 drum belt, maximizing surface contact to prevent slipping even under heavy laundry loads.
• High-Heat Structural Integrity: Specifically engineered to maintain its shape and grip under the intense thermal conditions of the dryer's internal cabinet, preventing the metal from expanding or loosening during high-heat cycles.
• Vibration-Damping Balance: Machined to exact tolerances to ensure a perfectly centered rotation, reducing mechanical vibration and noise while extending the life of the dryer motor bearings.

Replaces / Cross-Reference Part Numbers

• WP8066184
• AP6011686
• PS11744884
• 8578565
• W10299847
• 3394341
• 3389627
• WP8066184VP
• 694871
• PD00028572

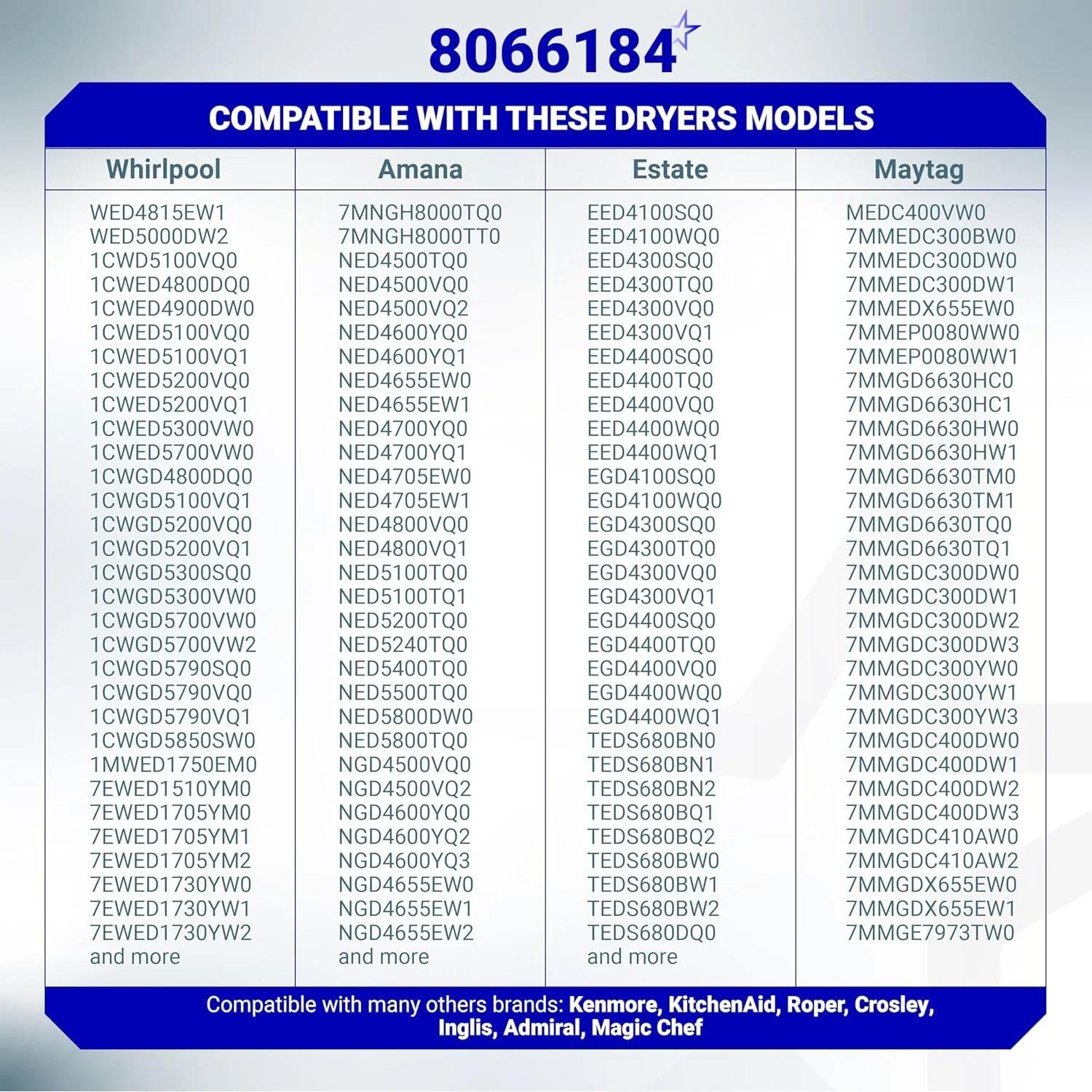

Compatibility & Fitment

This motor pulley is the standard drive component for the majority of Whirlpool-manufactured dryers. Key compatible models and series include:

• Whirlpool & Maytag: Fits hundreds of models including WED4815EW1, MEDC400VW0, WED5000DW2, and the Centennial/Bravos series.
• Kenmore (110 Series): Compatible with nearly all 110-prefix "70 Series" and "80 Series" dryers produced by Whirlpool (e.g., 110.60022010).
• Amana & Roper: Direct fit for NED4655EW1 and other NED/NGD series budget-friendly dryers.
• Admiral, Estate, & Inglis: Fits various top-lint-filter models utilizing the 8066184 threaded pulley style.
• Note: This pulley is threaded onto the motor shaft. It is typically located at the rear of the motor, facing the dryer drum.

When to Replace

• Drum Will Not Turn: The motor runs (you can hear it humming), but the drum remains stationary because the pulley threads have stripped or the pulley has detached.
• Squealing or Chirping Noise: A high-pitched sound during operation suggests the belt is slipping on a worn or glazed pulley surface.
• Burning Rubber Smell: Friction heat from the motor shaft spinning inside a loose pulley can melt the belt and create an acrid odor.
• Thumping or Vibration: A damaged or chipped pulley groove can cause the belt to "jump," creating a rhythmic thumping sound as the drum rotates.
• Visible Metal Wear: Upon inspection, the grooves appear "polished" flat or the internal threads show signs of metal-on-metal shaving.

Installation Tips

• Safety First: You MUST unplug the dryer. This repair requires accessing the motor assembly, which is located near high-voltage connections.
• Accessing the Pulley: You will need to remove the front panel and the dryer drum to reach the motor at the bottom-rear of the cabinet.
• Removal Direction: **IMPORTANT:** Many Whirlpool motor pulleys are Left-Hand Threaded. To loosen, you may need to turn it clockwise (Righty-Loosey) while holding the motor shaft steady with a wrench on the opposite side.
• Clean the Shaft: Before installing the new 8066184 pulley, use a wire brush to remove any old metal shavings or thread-locking compound from the motor shaft.
• Replace the Belt: It is highly recommended to install a new **341241 Drum Belt** at the same time, as the old belt has likely been damaged by the heat of the failing pulley.
