2 Pole Contactor 30 Amp 24VAC Coil

2 Pole Contactor 30 Amp 24VAC Coil

Key Features

• Poles: 2
• Coil Voltage: 24 VAC
• Frequency: 50/60 Hz
• Inductive Rating: 30 Amps (FLA)
• Resistive Rating: 40 Amps
• Terminals: Box Lugs and Quick Connects

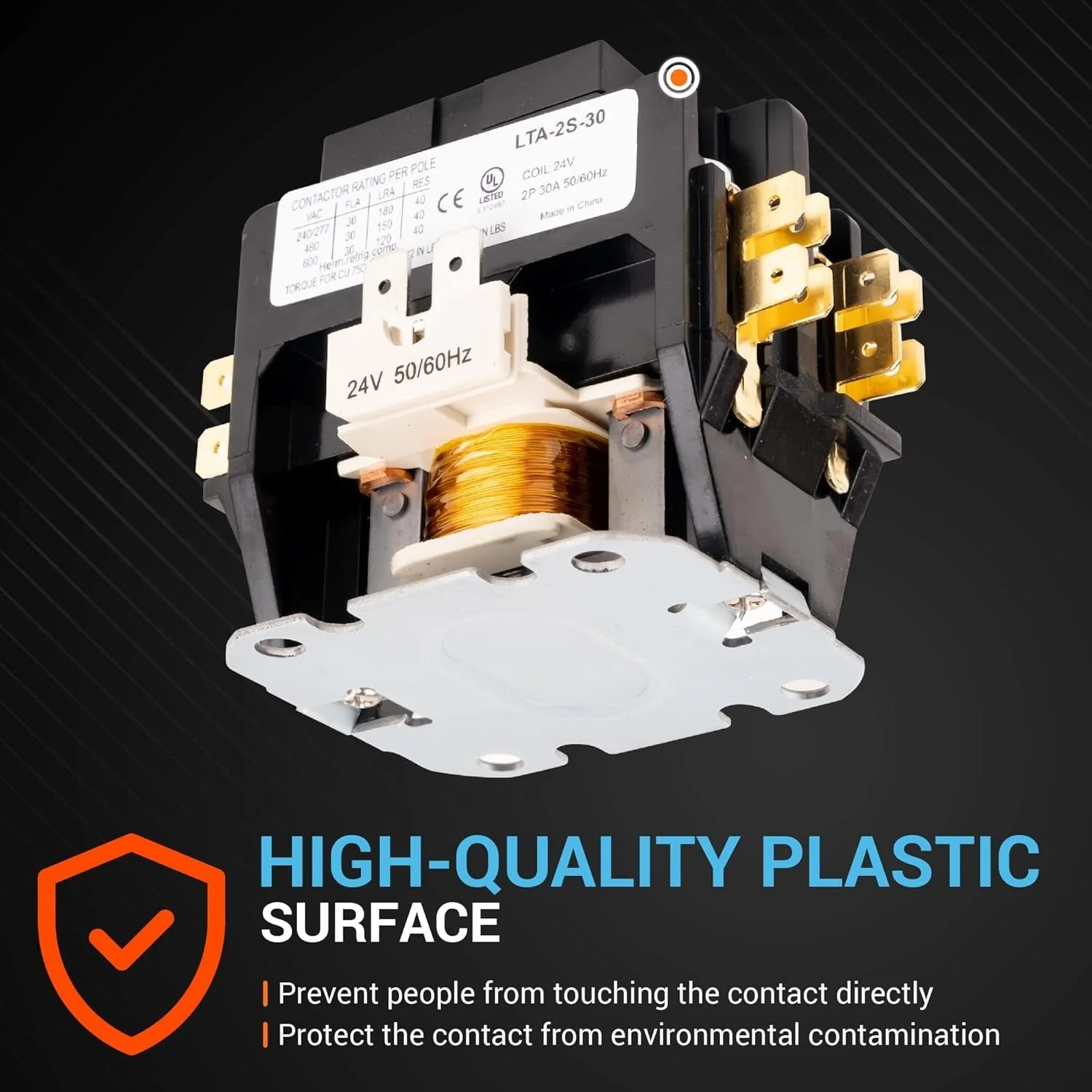

• Construction: Encased coil, silver alloy contacts, and copper terminals
• Mounting: Universal base plate for simple installation

Replaces / Cross-Reference Part Numbers

• Copeland: 90-244
• Packard: C230A
• FirstChoice: EC30224-EW
• ElecDirect: TCDP302B6
• Catalog Number: Y4624

Compatibility & Fitment

• Application: Definite purpose contactor for residential and commercial HVAC systems, including air conditioners and heat pumps.
• Designed as a universal replacement for original equipment manufacturer (OEM) contactors with matching electrical specifications.

When to Replace

• Outdoor condenser unit fails to start or runs intermittently.
• Loud humming or buzzing sound from the control panel.
• Visible pitting, burn marks, or arcing on contact points.
• Contacts are physically stuck or welded together, causing the unit to run continuously.

Installation Tips

• Disconnect all electrical power to the HVAC unit at the circuit breaker and service disconnect before servicing.
• Use a multimeter to confirm that no voltage is present.
• Photograph or label wires before disconnecting the old contactor to ensure correct re-wiring.
• Confirm the new contactor's specifications (voltage, amperage, poles) match the component being replaced.
• Ensure all electrical connections are clean and securely fastened to prevent overheating.
