WPW10181986 Range Oven Sensor Probe for Whirlpool Maytag Kenmore Ranges—
$20.40
The Story
WPW10181986 / W10181986 / W10131826 Range Oven Sensor Probe Replacement
Key Features

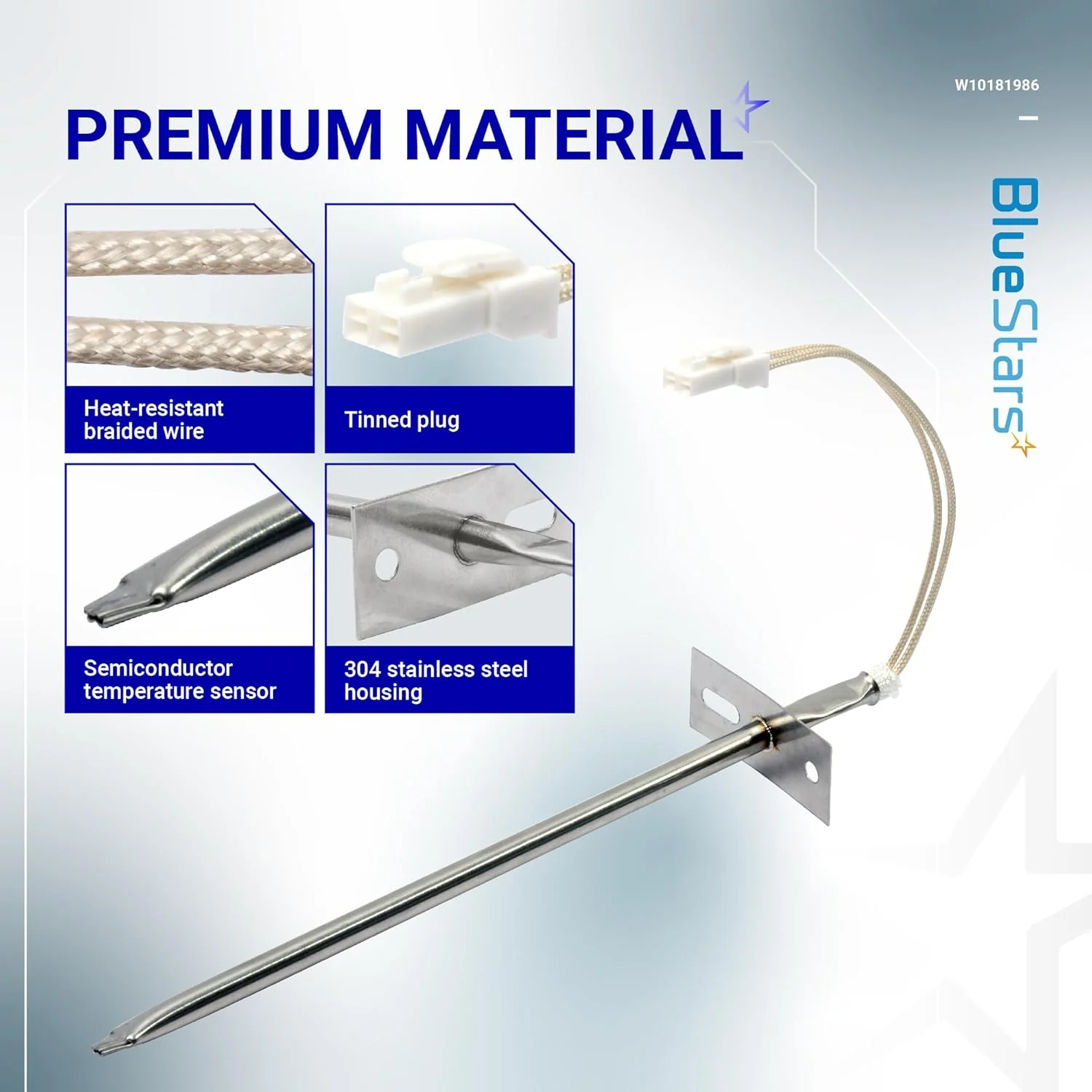

- Accurately monitors and regulates internal oven temperature for consistent heat distribution.
- Constructed with high-grade stainless steel for corrosion resistance and thermal stability.
- Includes standardized plastic wire harness connector for secure electrical termination.
- Calibrated to provide precise resistance readings (approximately 1080-1100 ohms at room temperature) to the main control board.

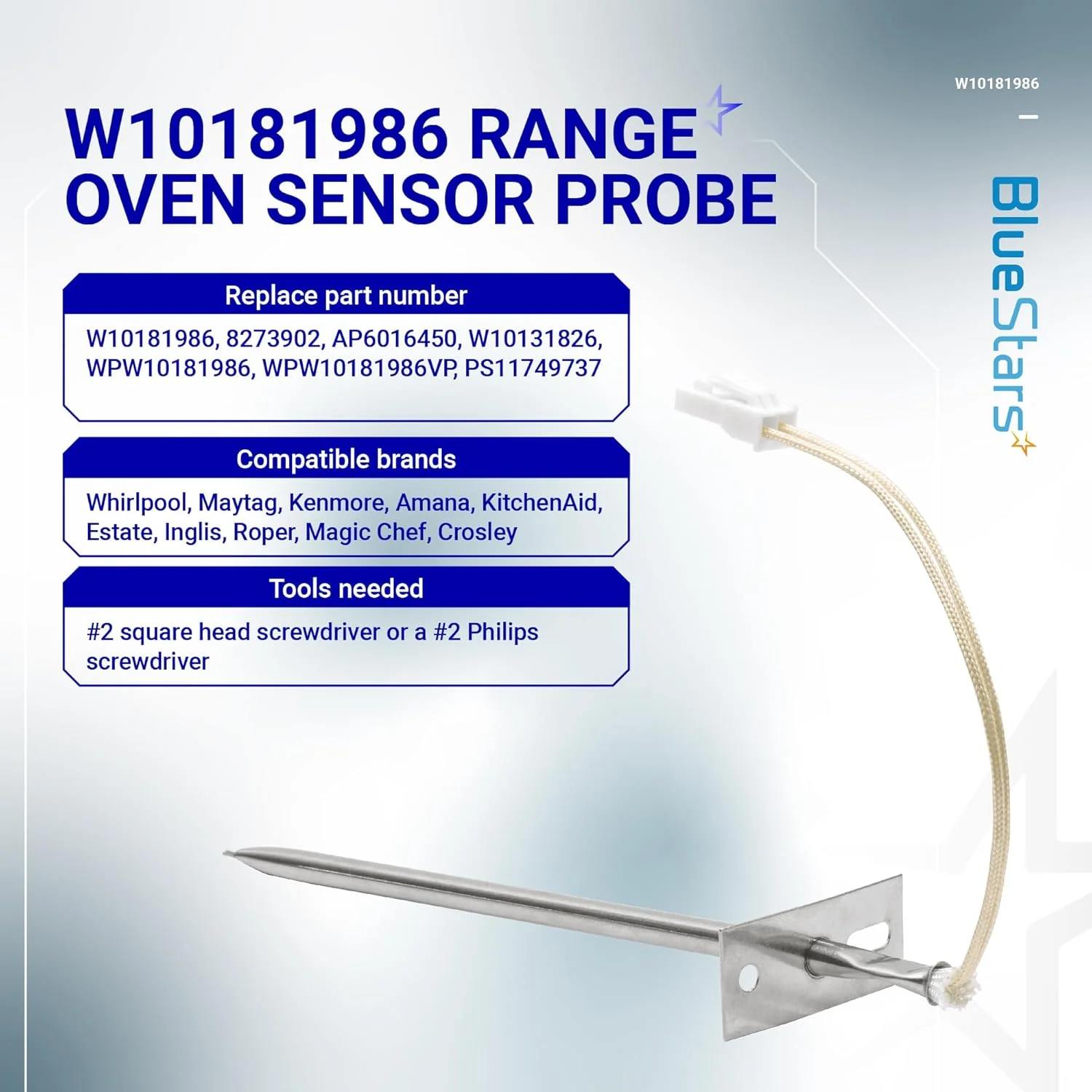

Replaces / Cross-Reference Part Numbers
- AP6016450
- PS11749737
- W10181986
- W10131826
- 8273902
- 1394200
- WPW10181986VP
- EAP11749737
- PD00002916
- ER10181986

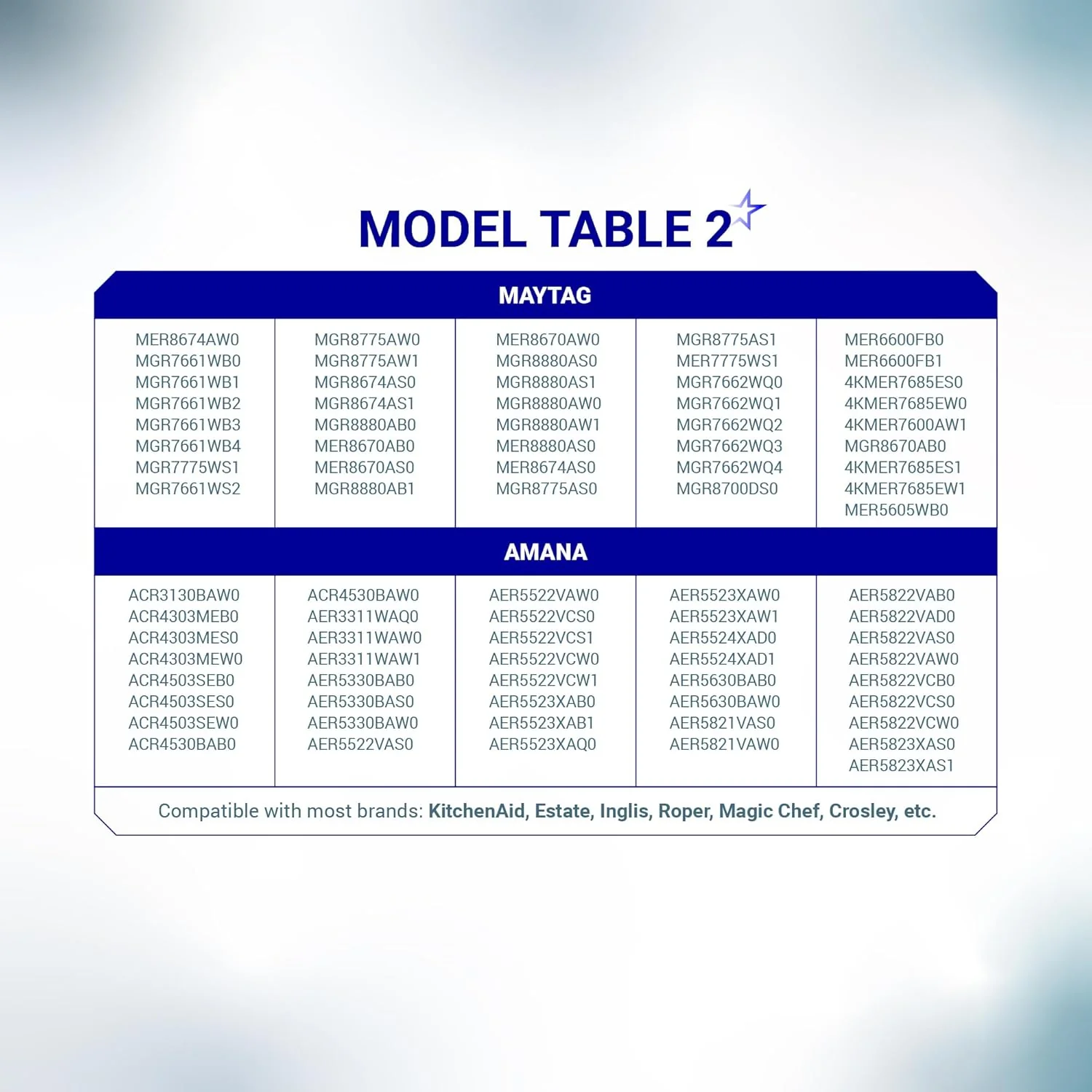

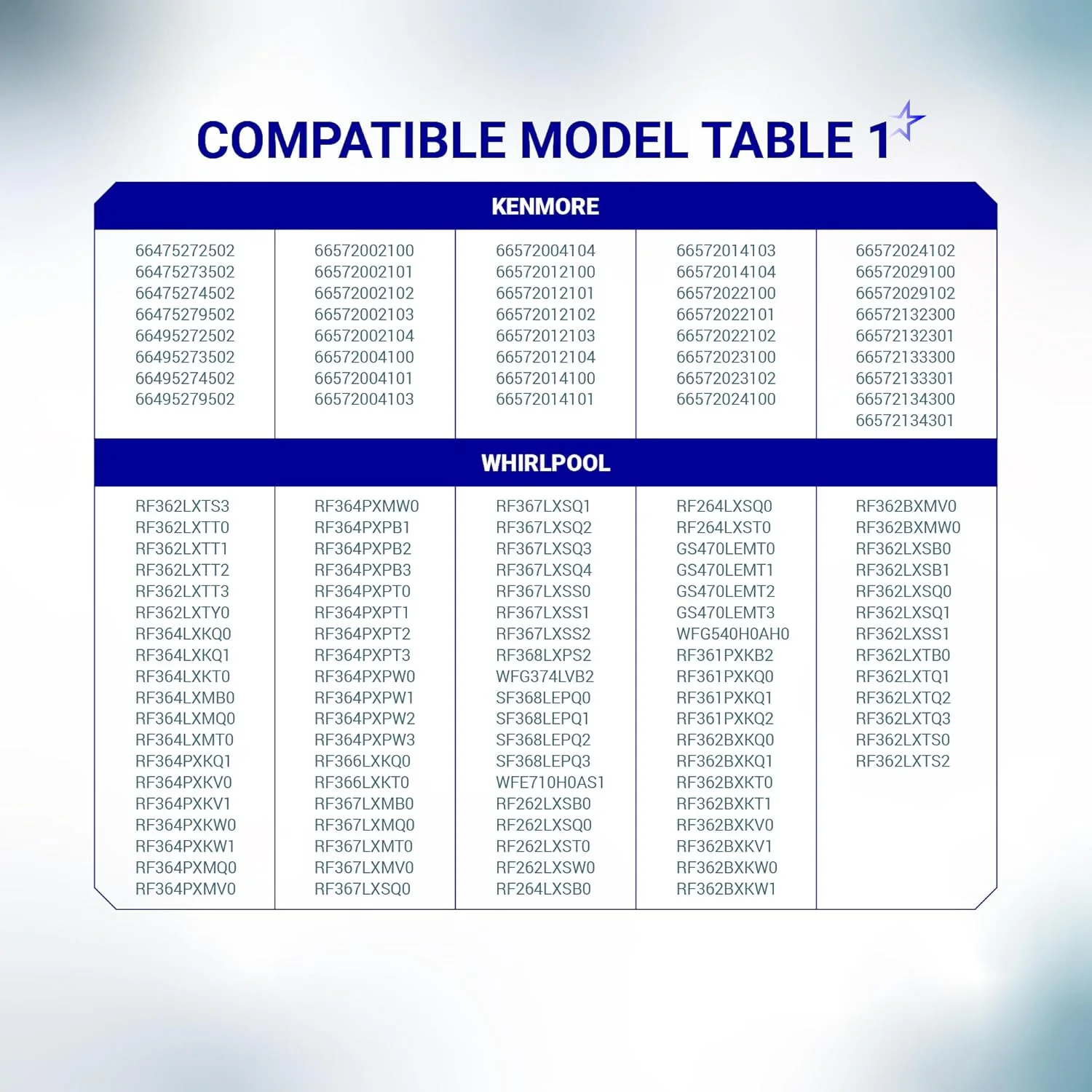

Compatibility & Fitment
- Compatible with Whirlpool, Maytag, Kenmore, KitchenAid, Amana, Estate, Jenn-Air, and Roper ranges and ovens.
- Fits various freestanding ranges, built-in wall ovens, and slide-in oven models.
- Engineered for use in both electric and gas-powered cooking appliances.

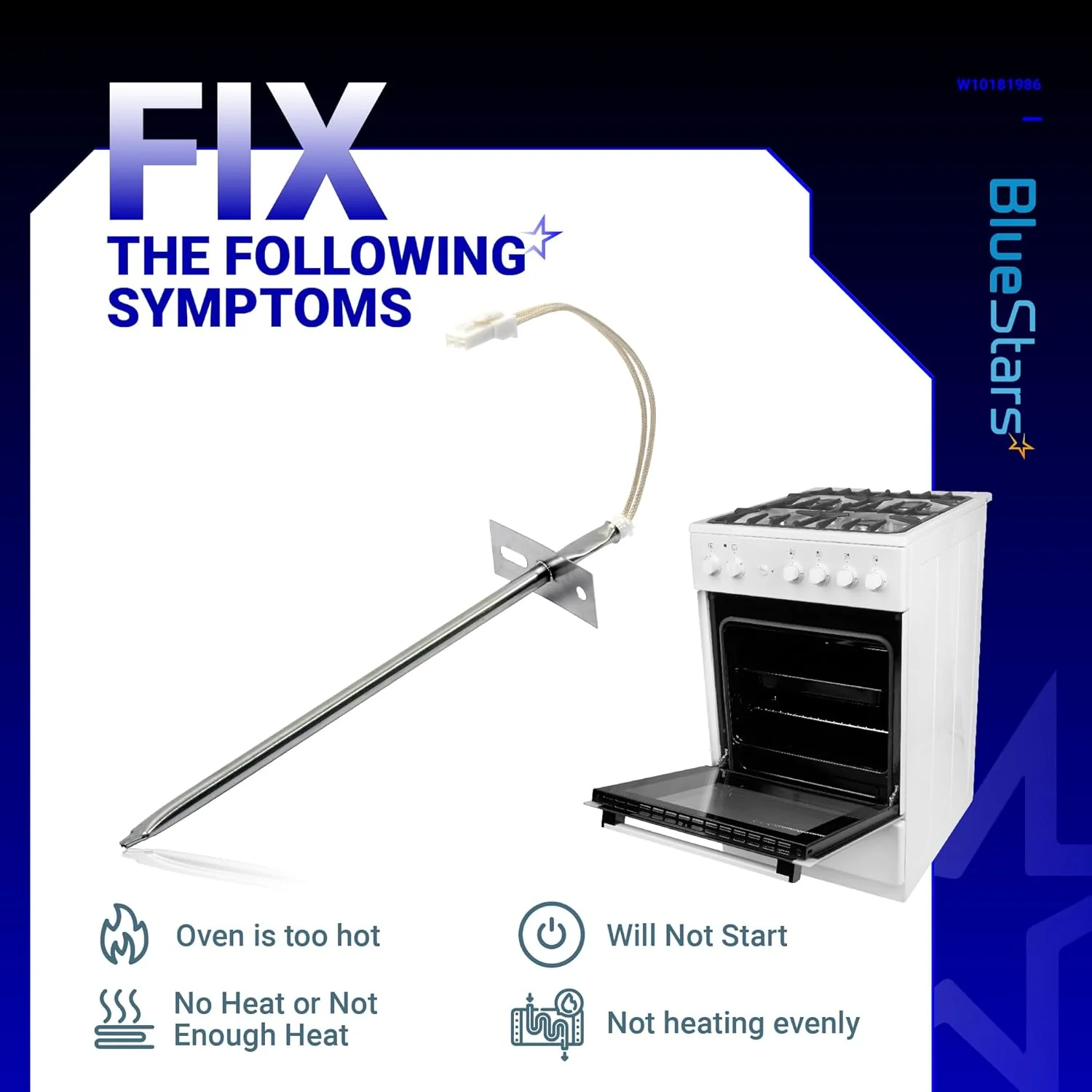

When to Replace
- Oven displays temperature-related error codes such as F3, F3-E1, F3-E2, or F4.
- Oven fails to reach the set temperature or significantly overshoots the target heat.
- Food is consistently undercooked or burnt despite correct settings.
- Resistance testing with a multimeter shows an open circuit or values outside the standard 1100-ohm range.
- The metal probe shows visible signs of warping, corrosion, or physical damage.
Installation Tips
- Disconnect the power supply to the range or oven before starting the repair.
- Access the sensor from either the interior back wall of the oven or by removing the rear access panel.
- Remove the mounting screws (typically 1/4 inch hex head) securing the probe to the oven cavity.
- Carefully pull the wire harness through the hole; if the connector is not accessible, you may need to remove the back panel.
- Unplug the old connector and snap the new sensor harness into place.
- Re-insert the probe and tighten the mounting screws until the unit is flush against the wall.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
WPW10181986 / W10181986 / W10131826 Range Oven Sensor Probe Replacement
Key Features
- Accurately monitors and regulates internal oven temperature for consistent heat distribution.
- Constructed with high-grade stainless steel for corrosion resistance and thermal stability.
- Includes standardized plastic wire harness connector for secure electrical termination.
- Calibrated to provide precise resistance readings (approximately 1080-1100 ohms at room temperature) to the main control board.
Replaces / Cross-Reference Part Numbers
- AP6016450
- PS11749737
- W10181986
- W10131826
- 8273902
- 1394200
- WPW10181986VP
- EAP11749737
- PD00002916
- ER10181986
Compatibility & Fitment
- Compatible with Whirlpool, Maytag, Kenmore, KitchenAid, Amana, Estate, Jenn-Air, and Roper ranges and ovens.
- Fits various freestanding ranges, built-in wall ovens, and slide-in oven models.
- Engineered for use in both electric and gas-powered cooking appliances.
When to Replace
- Oven displays temperature-related error codes such as F3, F3-E1, F3-E2, or F4.
- Oven fails to reach the set temperature or significantly overshoots the target heat.
- Food is consistently undercooked or burnt despite correct settings.
- Resistance testing with a multimeter shows an open circuit or values outside the standard 1100-ohm range.
- The metal probe shows visible signs of warping, corrosion, or physical damage.
Installation Tips
- Disconnect the power supply to the range or oven before starting the repair.
- Access the sensor from either the interior back wall of the oven or by removing the rear access panel.
- Remove the mounting screws (typically 1/4 inch hex head) securing the probe to the oven cavity.
- Carefully pull the wire harness through the hole; if the connector is not accessible, you may need to remove the back panel.
- Unplug the old connector and snap the new sensor harness into place.
- Re-insert the probe and tighten the mounting screws until the unit is flush against the wall.
