W11096268 W11220230 Washer Water Inlet Valve for Whirlpool Kenmore

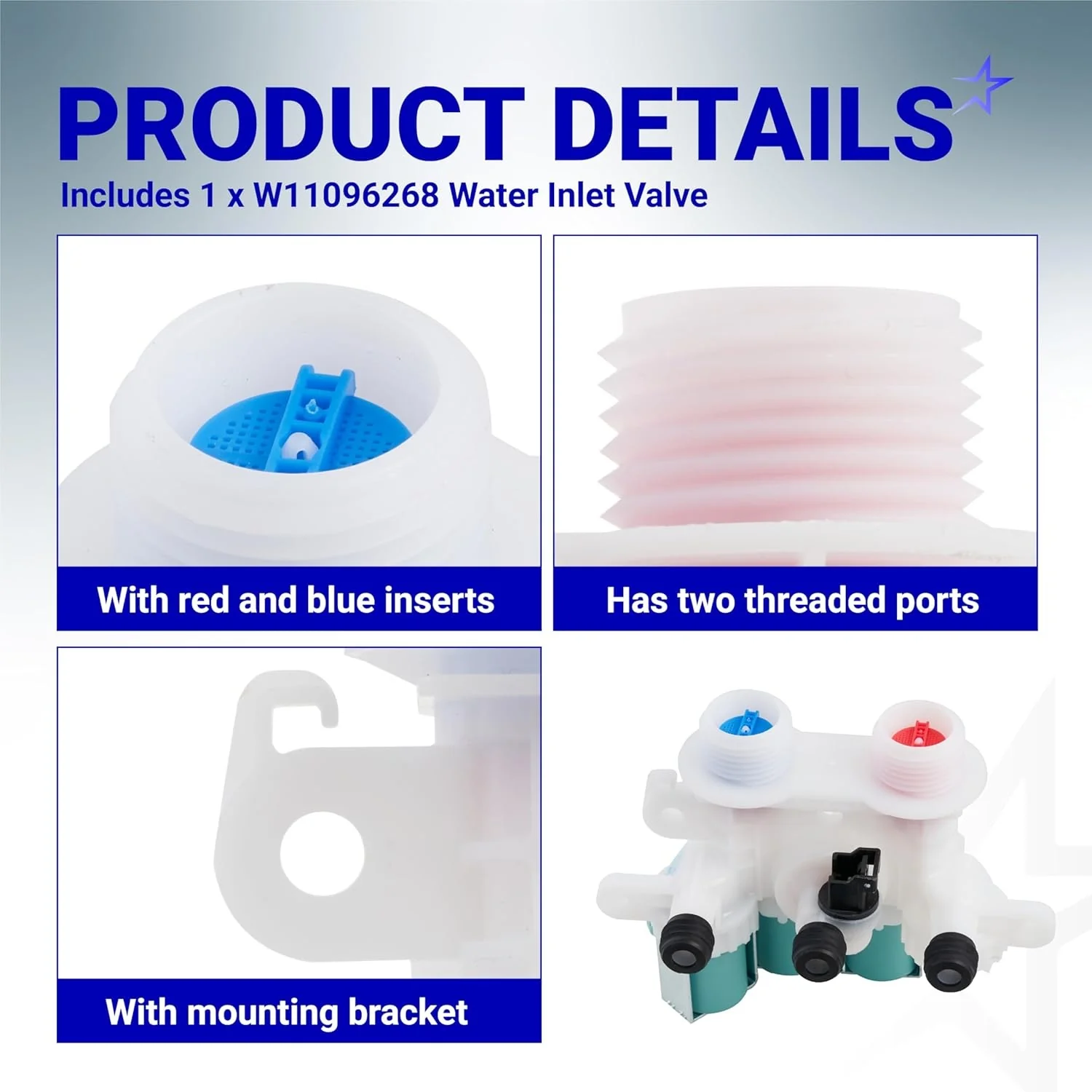

W11096268 / W11220230 Washer Water Inlet Valve

Key Features

• Controls the flow of hot and cold water into the washing machine.
• Features three solenoids for precise water temperature management.
• Electrical Specification: 120V, 60Hz.
• Approximate Dimensions: 4.28 in Height x 5.43 in Length.

Replaces / Cross-Reference Part Numbers

• W11220230
• AP6329544
• PS12349461
• W10632527
• W10758829
• W10853296
• 4591408
• EAP12349461
• W11220230VP
• W11096268VP

Compatibility & Fitment

• Designed for select washing machine models from brands including Whirlpool, Maytag, and Kenmore.
• Verify compatibility with your specific model number before ordering.

When to Replace

• Washer does not fill with water, or fills slowly.
• Water leaks from the valve body or hose connections.
• Washer fills with the incorrect water temperature.
• Washer continues to fill with water when powered off.
• Loud humming or buzzing noise is present during the fill cycle.

Installation Tips

• Disconnect the washer from both power and water supplies before beginning installation.
• Place towels under the work area to catch any residual water from hoses.
• Inspect and clean the filter screens in the water inlet hoses.
• Ensure all hose connections are hand-tightened, then turned an additional quarter-turn with pliers to prevent leaks.
