W11032770 Dishwasher Circulation Pump Motor Assembly for Whirlpool Kenmore KitchenAid

W11032770 Dishwasher Circulation Pump Motor Assembly

Key Features

• Powers water circulation for the lower spray arm during the wash cycle.

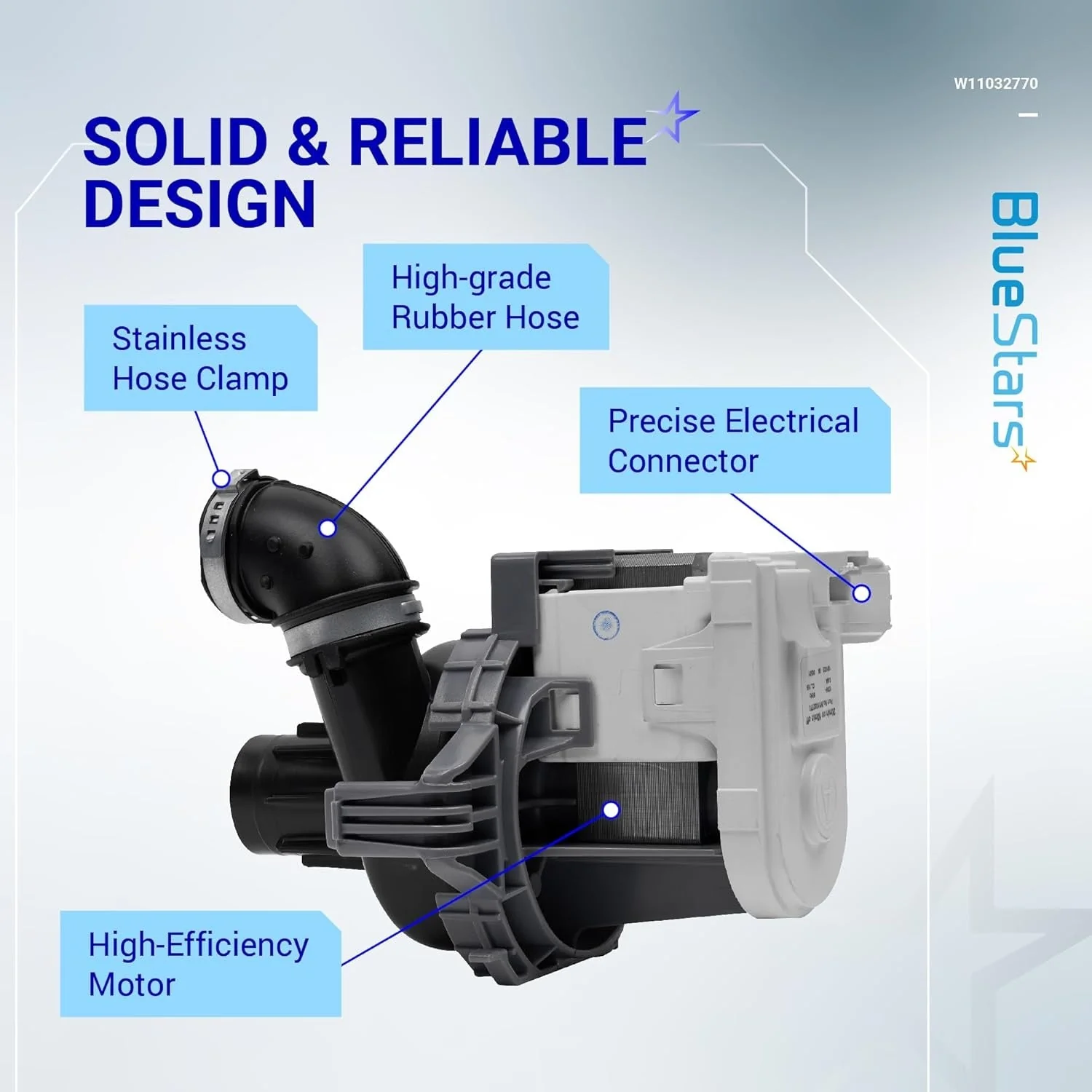

• Includes both the main circulation pump and motor as a single assembly.
• Electrical rating: 120V, 0.8A.
• Duty cycle: 20 minutes on, 10 minutes off.

Replaces / Cross-Reference Part Numbers

• AP6039091
• PS11773089
• W10529163
• W10510667
• W10440715
• W10349483
• W10816492
• W10864037
• W10885542
• WPW10529163

Compatibility & Fitment

Designed for select models from brands including:

• Whirlpool
• KitchenAid
• Kenmore
• Jenn Air

Always verify fitment with your specific appliance model number before ordering.

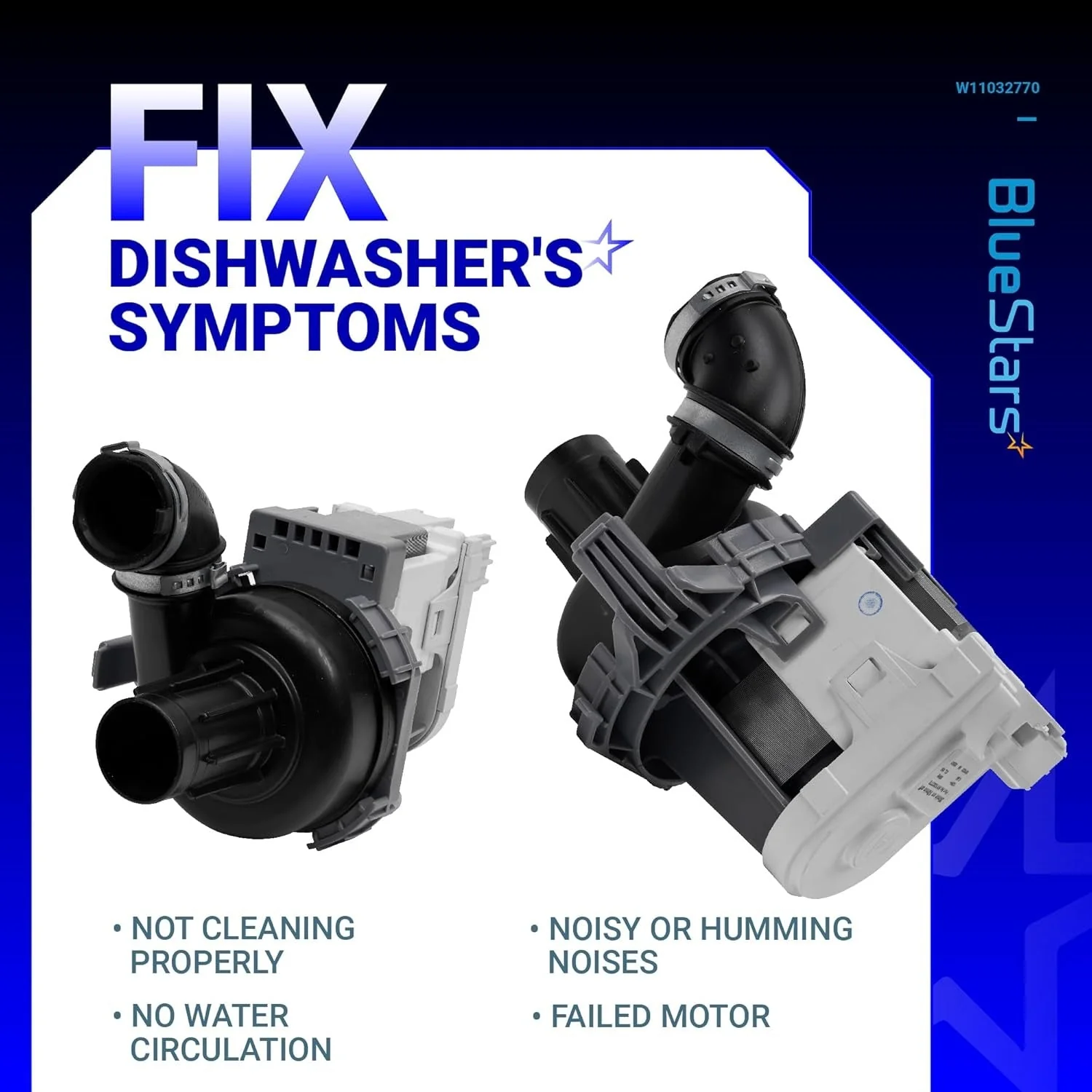

When to Replace

• Dishes remain dirty or are poorly cleaned after a cycle.
• The dishwasher makes unusual humming, grinding, or loud noises during operation.
• Water is not being sprayed from the spray arms.
• The dishwasher fails to start or stops mid-cycle.
• Leaks are visible around the pump and motor area under the dishwasher.

Installation Tips

• Disconnect the dishwasher from both power and water supplies before starting the repair.
• Access to this part typically requires pulling the dishwasher out and tipping it to reach the underside.
• Place towels under the unit to absorb residual water from hoses and the sump.
• Ensure all hose clamps are properly positioned and tightened to prevent leaks after installation.
