W10613606 Refrigerator Compressor Start Relay & Capacitor for Whirlpool KitchenAid Kenmore Refrigerators

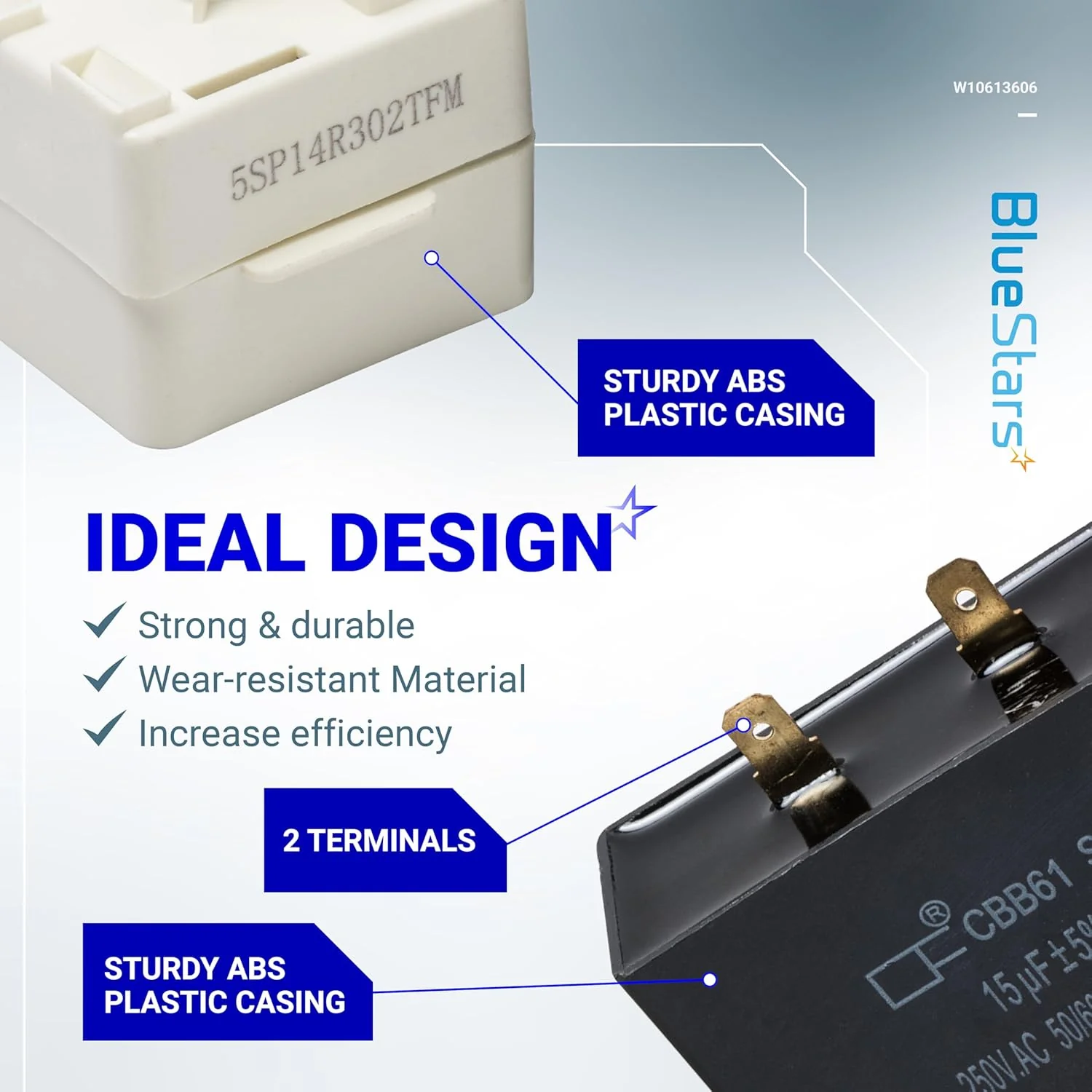

W10613606 Refrigerator Compressor Start Relay and Capacitor

Key Features

• Includes both the compressor start relay and run capacitor in a single unit.
• Provides the necessary electrical boost to start the compressor motor.
• Regulates the compressor's start and run cycles to maintain temperature.
• Direct replacement for specified part numbers, ensuring proper fit and function.

Replaces / Cross-Reference Part Numbers

• AP5787784
• PS8746522
• W10416065
• 67003186
• 67005560
• 67005561
• 67005562
• 67003764
• 8208290
• W10613606VP

Compatibility & Fitment

• Designed for use with select refrigerator models from major brands including Whirlpool, Kenmore, Maytag, and KitchenAid.
• Always verify compatibility by checking your appliance's model number or the part number on the original component.

When to Replace

• Refrigerator compressor does not start, often accompanied by a clicking sound.
• The refrigerator is not cooling, but the interior lights and fans are operational.
• Compressor attempts to start with a hum, then shuts off.
• Visible damage, such as burning or cracking, on the original relay.

Installation Tips

• Disconnect the refrigerator from its power source before starting the repair.
• Access the compressor, located at the rear of the refrigerator.
• Remove the terminal cover to expose the existing relay and capacitor.
• Note the wire orientation before detaching the old part from the compressor terminals.
• Press the new assembly firmly onto the compressor terminals until secure.
