AXV417WHP Pod Swing, AXV434WHP Flap, AXV604WHP Bezels & AXV414P Pod Shoes Kit for Hayward Navigator, Pool Vac Ultra Cleaners

Pool Cleaner Kit for Hayward Navigator, Pool Vac Ultra Cleaners

Key Features

• Complete rebuild and maintenance kit for automatic pool cleaners.
• Kit includes all parts needed for a standard pod and shoe replacement.
• Engineered for direct replacement of original equipment components.

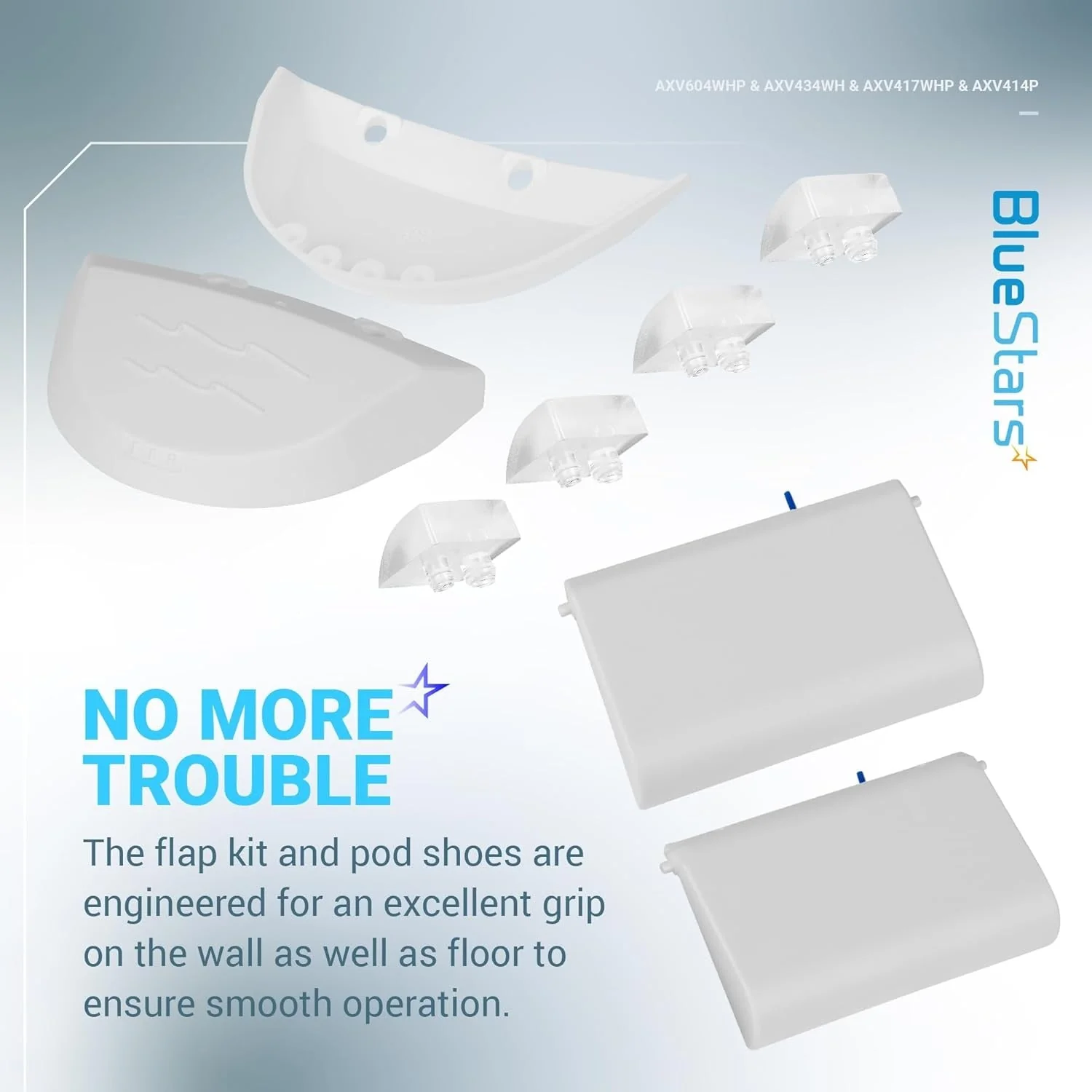

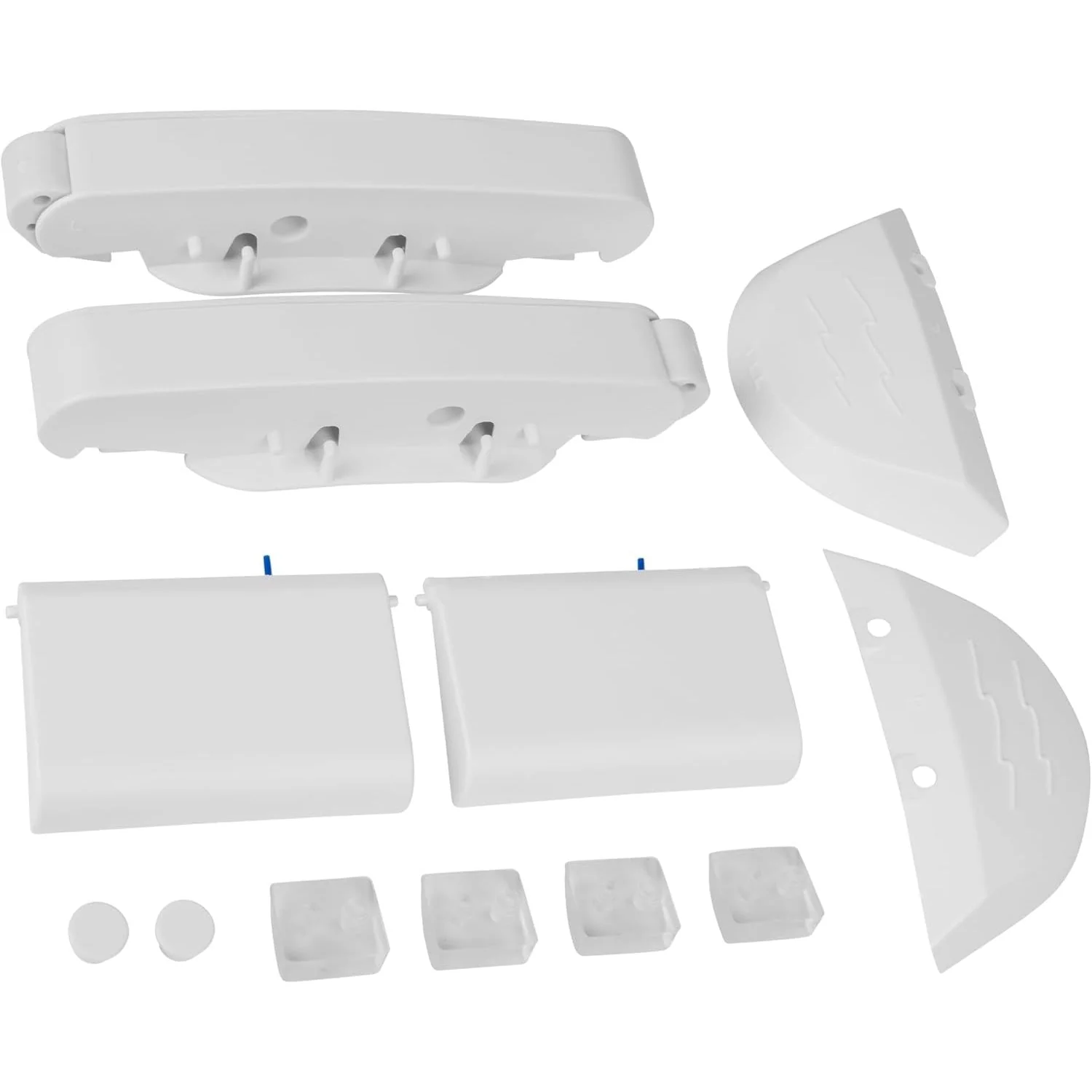

• Package Contents:

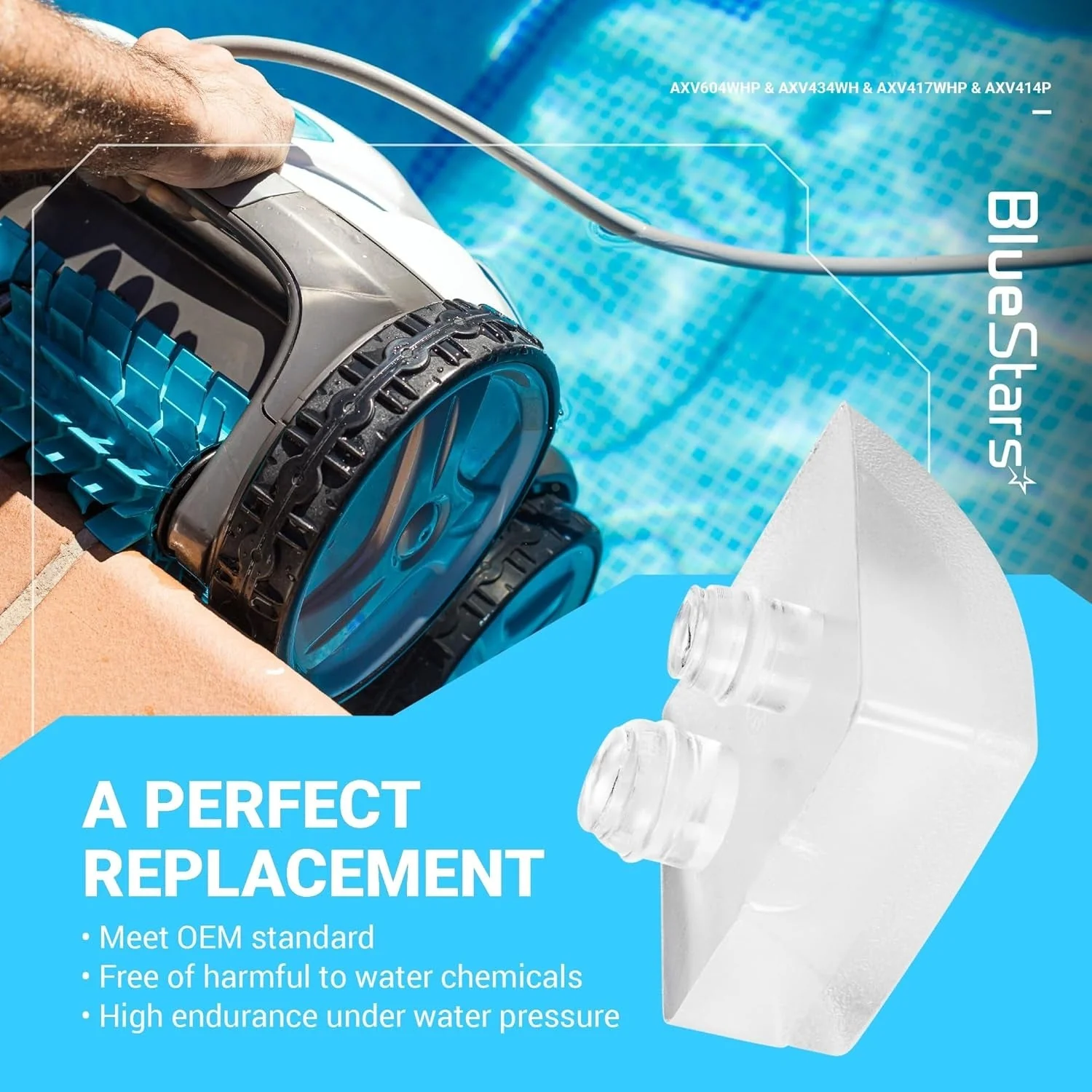

  • 4 Pod Shoes (AXV414P)

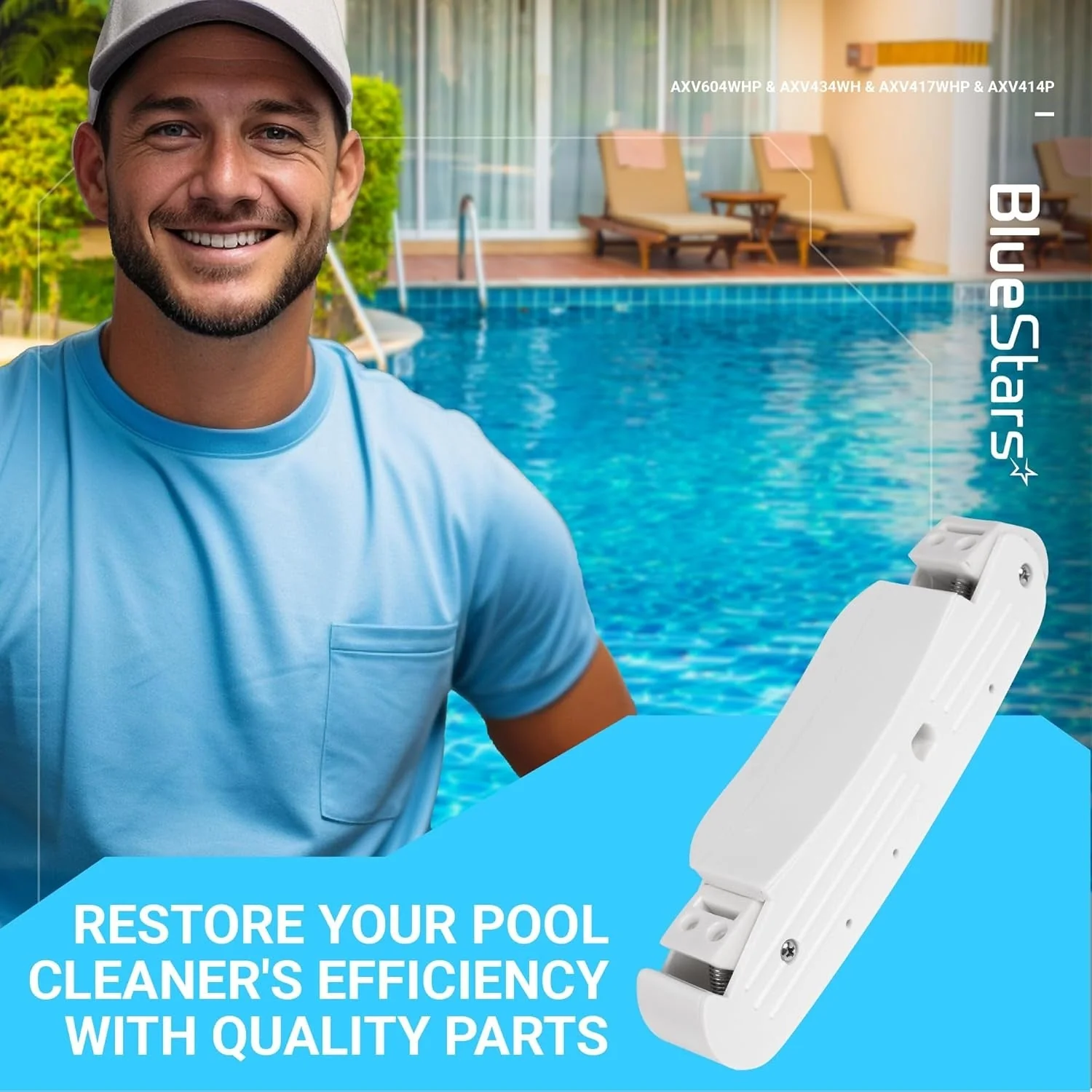

  • 2 Pod Swings, Left & Right (AXV417WHP)
  • 2 Flaps (AXV434WHP)
  • 2 Bezels, Front & Rear (AXV604WHP)

Replaces / Cross-Reference Part Numbers

• AXV417WHP
• AXV434WHP
• AXV604WHP
• AXV414P

Compatibility & Fitment

• Hayward Navigator
• Hayward Pool Vac
• Hayward Pool Vac Plus
• Hayward Pool Vac Ultra
• Arneson Pool Vac
• Arneson Pool Vac Plus

When to Replace

• Cleaner fails to move or moves in circles.
• Erratic or non-symmetrical movement patterns.
• Visible cracks, wear, or brittleness on existing parts.
• Pod shoes are worn smooth, reducing traction on pool surfaces.
• Cleaner frequently gets stuck on main drains, stairs, or in corners.

Installation Tips

• Disconnect the cleaner from the pool's suction line before starting service.
• Refer to your pool cleaner's original manual for disassembly diagrams.
• Clean debris from the cleaner's internal turbine and gear mechanism during installation.
• Ensure the new pod shoes are fully seated and snap into place.
• After reassembly, confirm that the pod swings move freely without obstruction.
