[UL Certified] 829-995 uF MFD 110-125 VAC ±20% Round Motor Start Capacitor 50/60 Hz - Replaces 6FLL8, PMJ829

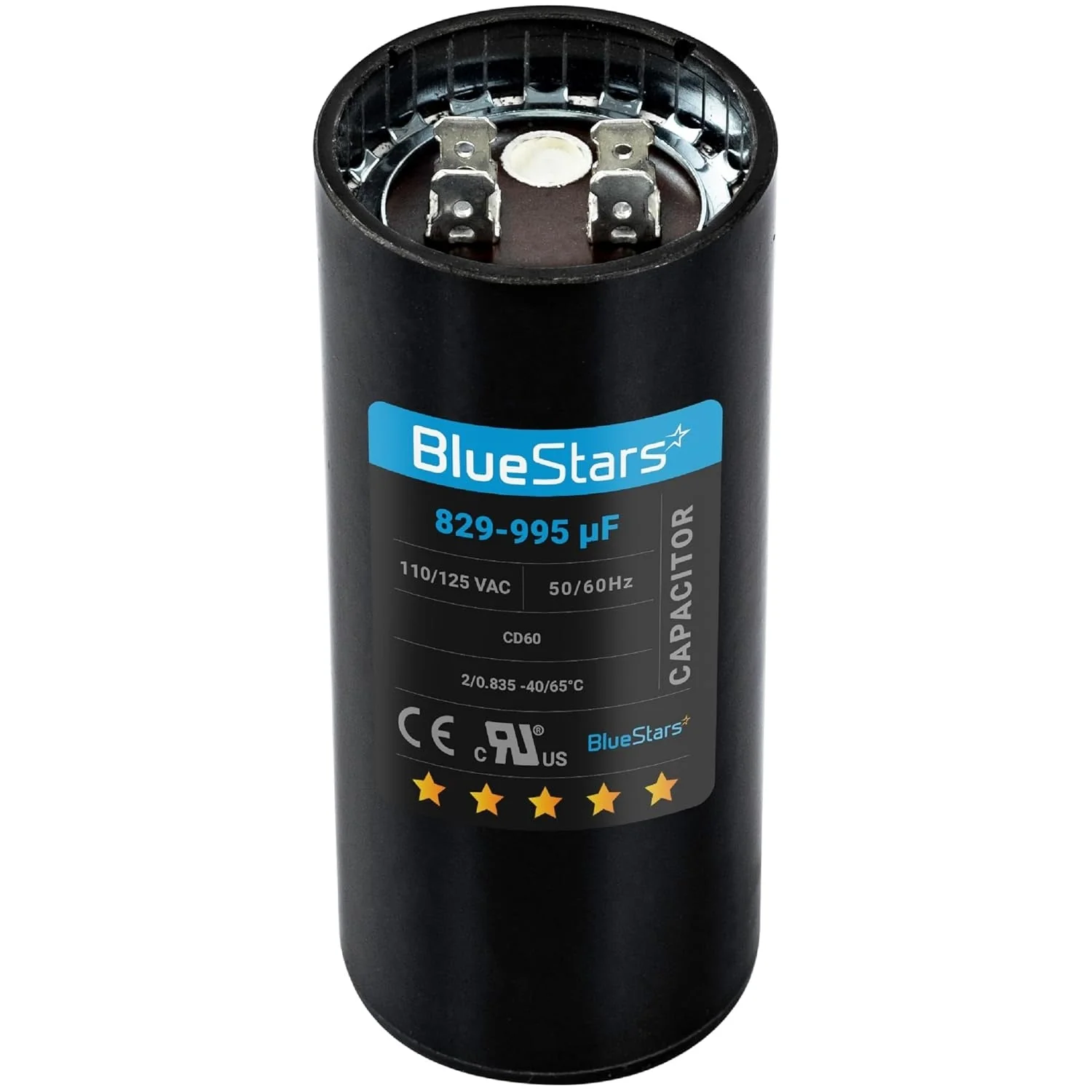

829-995 uF/MFD 110-125 VAC ±20% Round Motor Start Capacitor

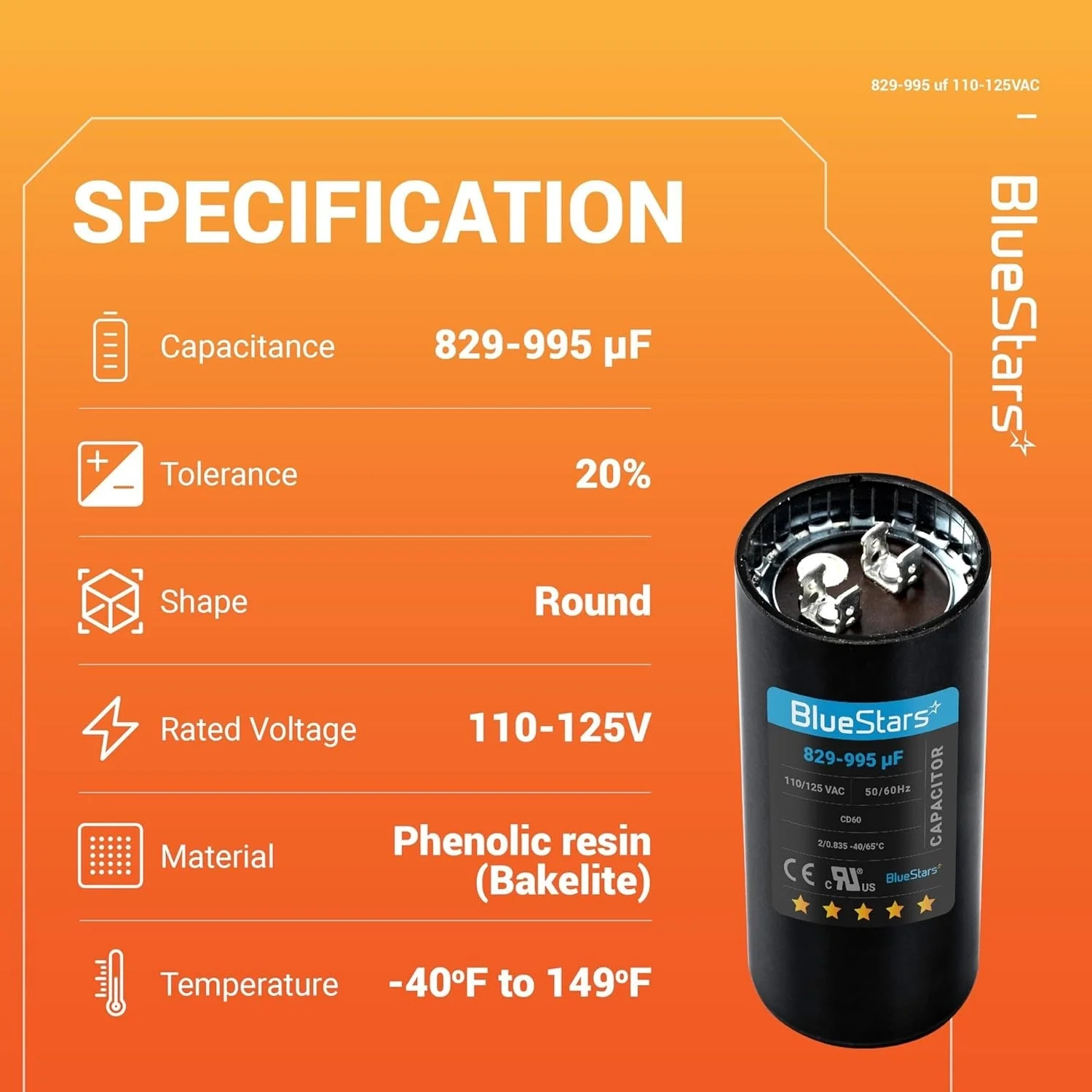

Key Features

• Capacitance: 829-995 Microfarad
• Voltage Rating: 110-125 VAC
• Frequency: 50/60 Hz
• Tolerance: ±20%
• Operating Temperature: -40 °C to 65 °C (-40 °F to 149 °F)
• Terminals: 1/4 inch quick connect

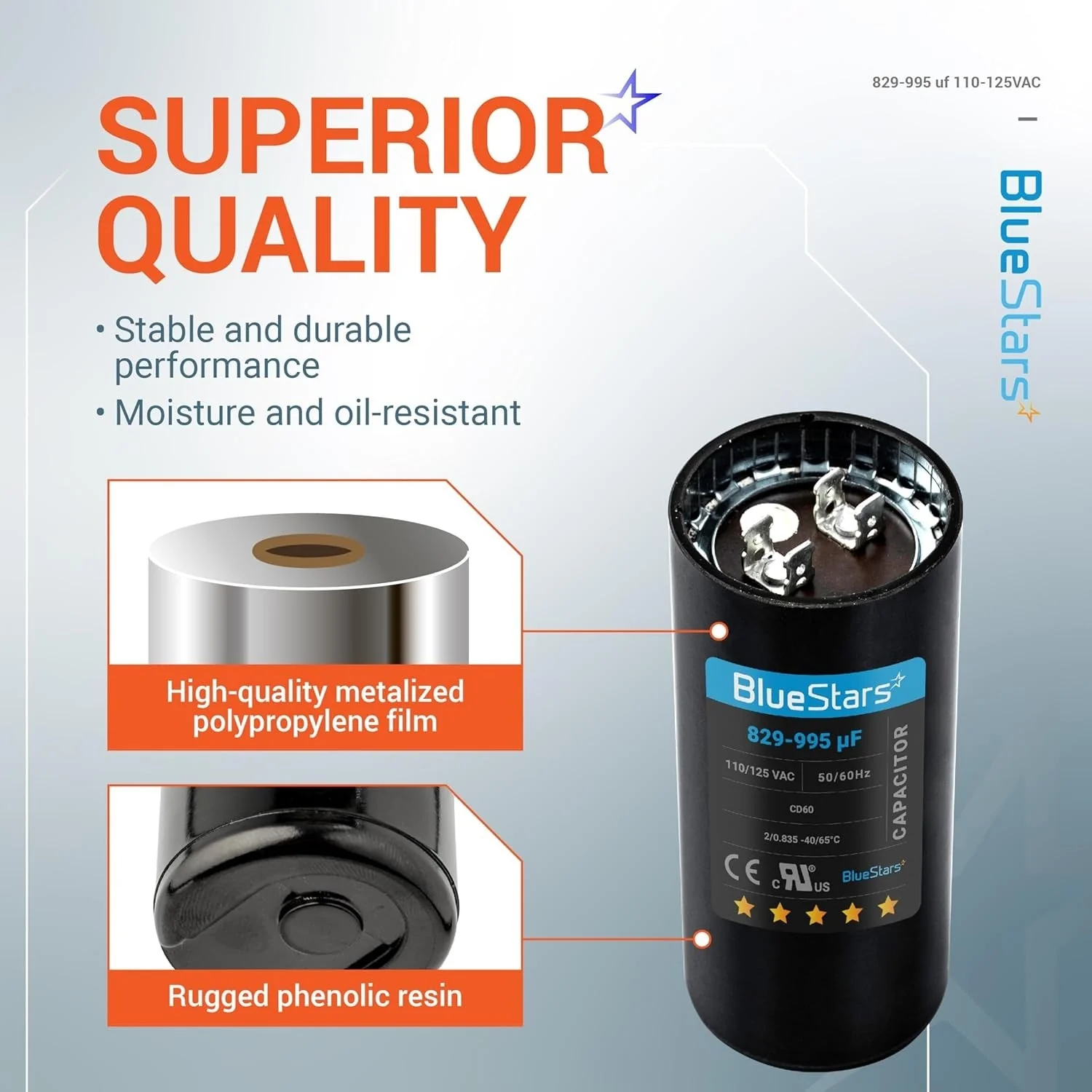

• Case Material: Moisture and oil-resistant plastic
• Duty Cycle: 20 starts per hour, 3-second duration per start
• Certifications: UL Recognized

Replaces / Cross-Reference Part Numbers

• 6FLL8
• BC-829
• CAP-829-110
• CAP829125
• CD60
• E-829
• PMJ829

Compatibility & Fitment

• Universal design for single-phase AC electric motors requiring a start capacitor.
• Common applications include HVAC units, air compressors, well pumps, and various fan motors.
• Verify compatibility by matching the capacitance (¬µF/MFD) and voltage (VAC) ratings of the original capacitor.

When to Replace

• Motor hums but fails to start.
• Slow or delayed motor startup.
• Circuit breaker trips when the motor attempts to start.
• Capacitor case is visibly bulged, cracked, or leaking fluid.
• Capacitance measurement is outside the component's rated tolerance.

Installation Tips

• Disconnect all electrical power to the equipment before servicing.
• Safely discharge the old capacitor before handling to prevent electric shock.
• This is a non-polarized capacitor; wires can be connected to either terminal.
• Ensure the new capacitor's voltage rating is equal to or greater than the original.
• Ensure the new capacitor's microfarad (¬µF/MFD) rating is within ¬±10% of the original for optimal performance.
