708-850 uF MFD 110-125 VAC 50/60 Hz Round Start Capacitor - Universal Fits Air Conditioner, Electric Motors

708-850 uF/MFD 110-125 VAC Round Start Capacitor

Key Features

• Capacitance: 708-850 microfarads (uF/MFD)
• Voltage Rating: 110-125 Volts AC (VAC)
• Frequency: 50/60 Hz
• Operating Temperature: -40°C to +65°C (-40°F to +149°F)
• Terminals: 1/4 inch male quick-disconnect
• Case Material: Plastic, moisture and oil resistant
• Shape: Round

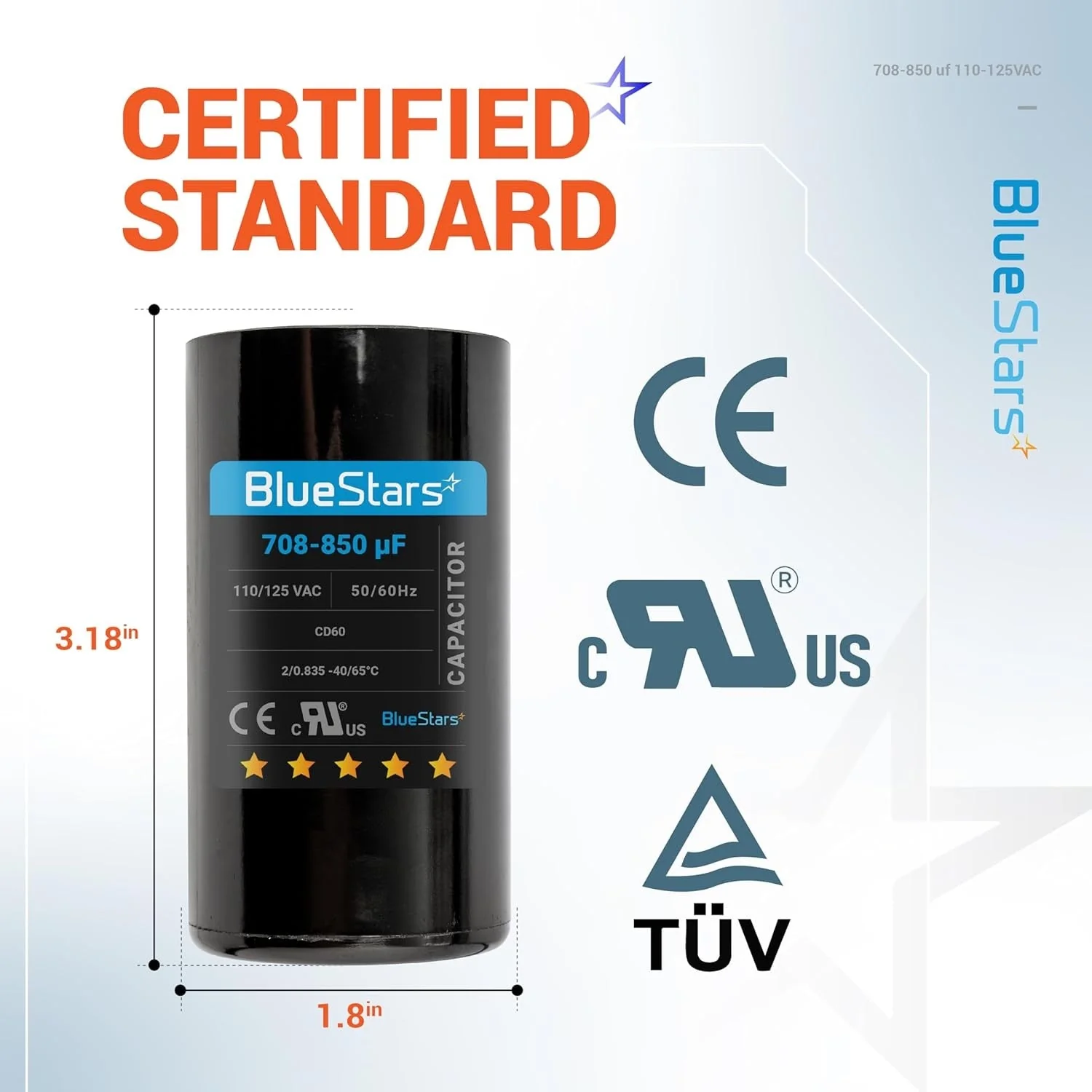

• Dimensions: 1-13/16 inch Diameter x 4-3/8 inch Height
• Safety Standard: UL 810 Recognized

Replaces / Cross-Reference Part Numbers

• Direct replacement for any start capacitor with the same capacitance and voltage ratings.
• Replaces parts in the 708-850 uF/MFD range rated for 110 VAC, 115 VAC, or 125 VAC.

Compatibility & Fitment

• Designed for intermittent duty in single-phase AC motor starting circuits.
• Provides temporary starting torque for electric motors found in appliances and equipment such as air conditioners, heat pumps, refrigeration units, well pumps, and pool pumps.
• Fitment is determined by matching the original capacitor's uF/MFD rating, VAC rating, and physical dimensions. The voltage rating of the replacement capacitor must be equal to or greater than the original.

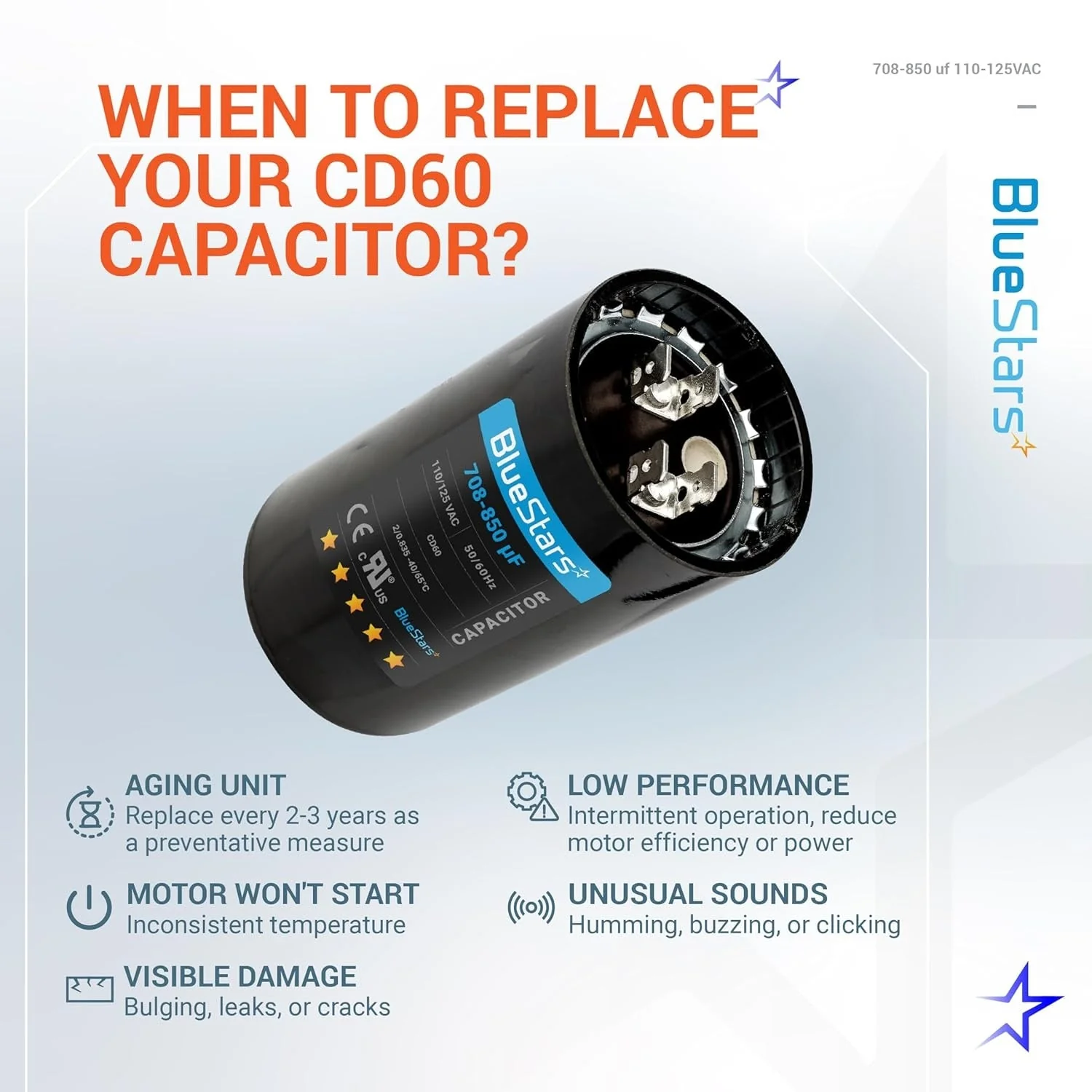

When to Replace

• Motor hums but fails to start.
• Motor starts slowly or requires manual assistance to start.
• Circuit breaker trips when the motor attempts to start.
• Visible damage to the existing capacitor, such as bulging, cracking, or leaking fluid.

Installation Tips

• Disconnect all electrical power to the equipment before beginning service.
• Safely discharge the existing capacitor by shorting the terminals with a resistor or an insulated screwdriver.
• Verify the capacitance (uF/MFD) and voltage (VAC) of the new capacitor match the specifications of the part being replaced.
• Note the wire placement on the old capacitor terminals before disconnecting.
• Ensure a secure mechanical and electrical connection.
