6 uF MFD ±5% 370/440 VAC Oval Run Start Capacitor 50/60 Hz - Fits AC Motor Run, Fan Start, Heat Pump

6uF MFD ±5% 370-440VAC Oval Run Start Capacitor

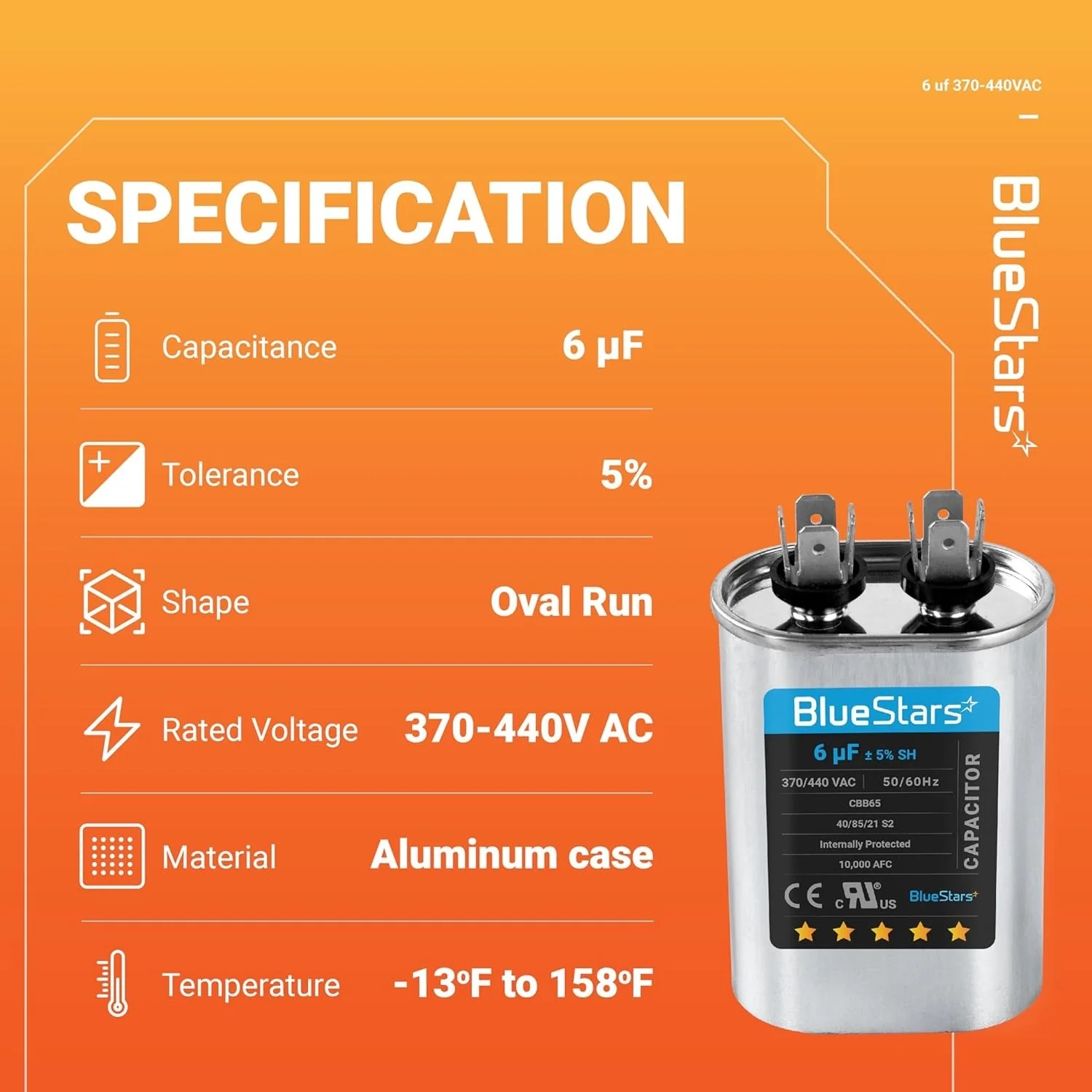

Key Features

• Capacitance: 6 microfarads (uF)
• Tolerance: ±5%
• Voltage Rating: 370/440 VAC, dual rated
• Frequency: 50/60 Hz

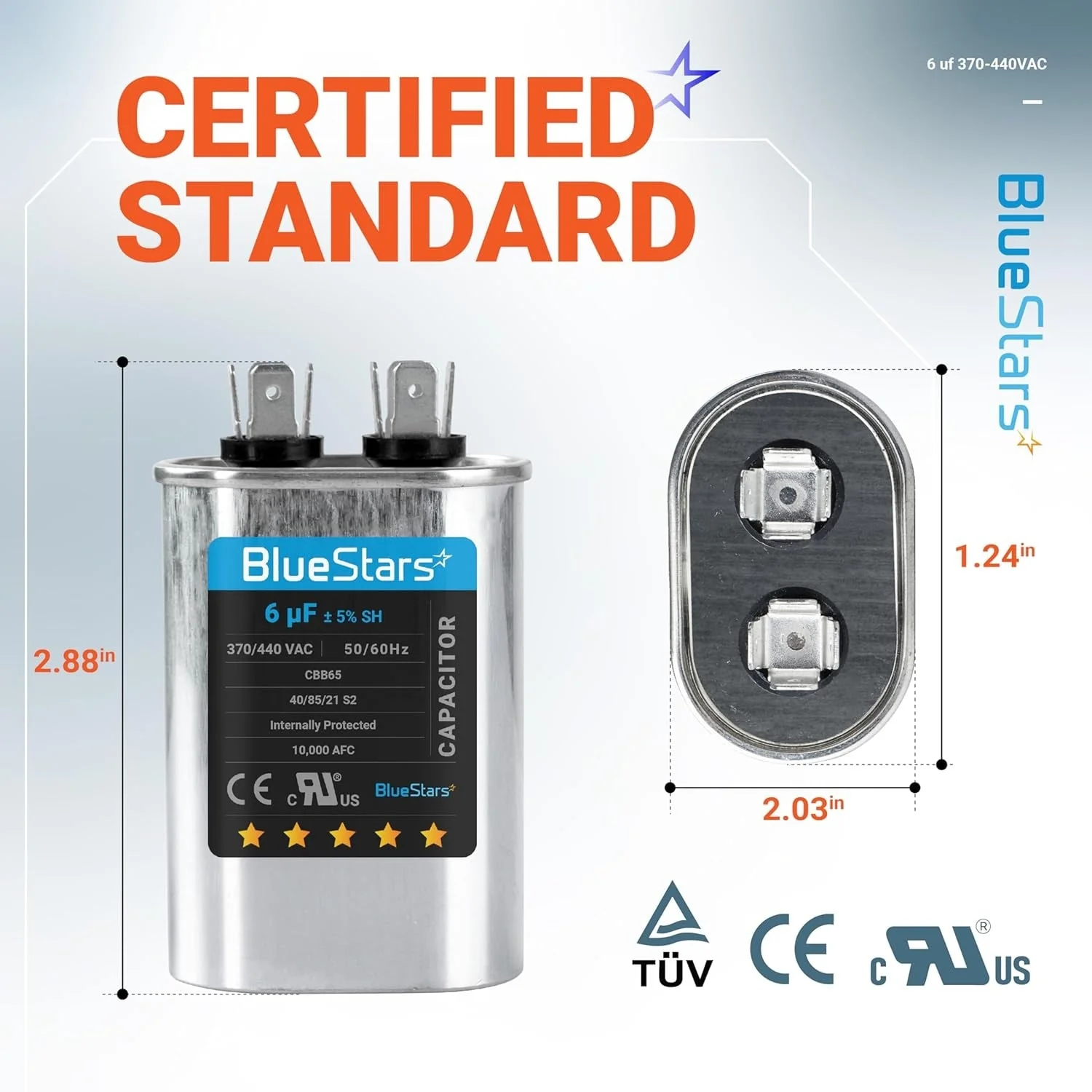

• Shape: Oval
• Operating Temperature: -40° C to 70° C
• Construction: Metallized polypropylene film
• Dielectric: Non-PCB fluid-filled
• Terminals: 1/4 inch male quick-connect
• Standards: EIA-456 compliant, UL recognized, RoHS compliant

Replaces / Cross-Reference Part Numbers

• Replaces any oval 6 MFD or 6 uF capacitor with a 370V or 440V rating.
• AMRAD USA2030

Compatibility & Fitment

• Designed for continuous duty in single-phase AC motor run applications.
• Used in air conditioners, heat pumps, compressors, furnaces, and fan motors.
• The physical dimensions must match the mounting bracket of the existing equipment.

When to Replace

• Motor hums but does not start.
• Motor starts or runs slowly.
• Fan blades require a manual push to start spinning.
• Visible signs of damage, such as a bulging top, cracks, or fluid leaks.
• Capacitance measures outside the ±5% tolerance when tested with a multimeter.

Installation Tips

• Disconnect all electrical power to the appliance before installation.
• Safely discharge the old capacitor by shorting the terminals with a resistor or insulated screwdriver.

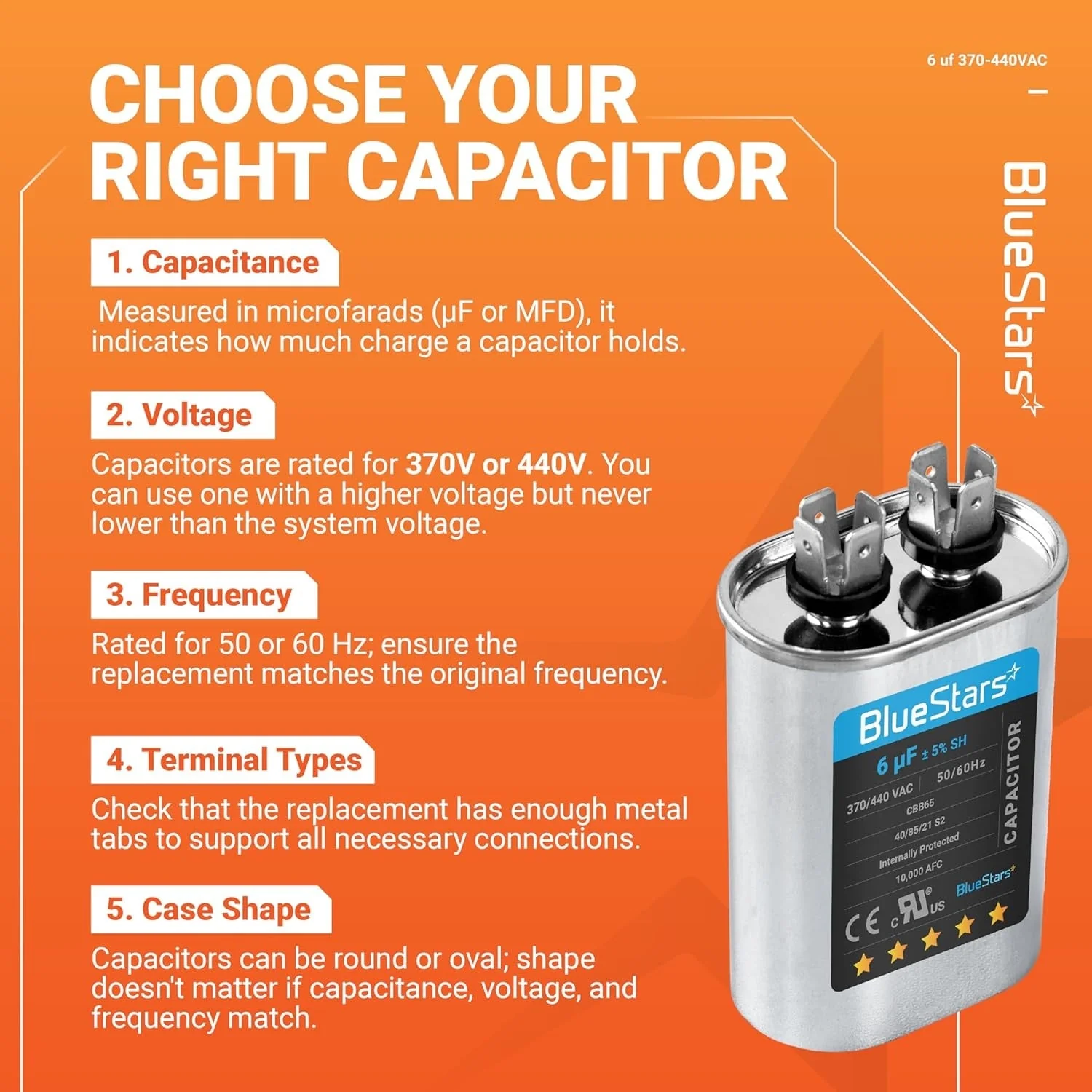

• Ensure the new capacitor's uF (MFD) rating matches the original specification exactly.
• Using a capacitor with an equal or higher VAC rating is acceptable. Do not use one with a lower VAC rating.
• Note the wire placement on the old capacitor's terminals before disconnecting.
