50+10 uF MFD ±5% 370/440 VAC CBB65B Dual Run Start Round Capacitor - Fits Condenser, Heat Pump

50+10 uF MFD ±5% 370/440 VAC CBB65B Dual Run Start Round Capacitor

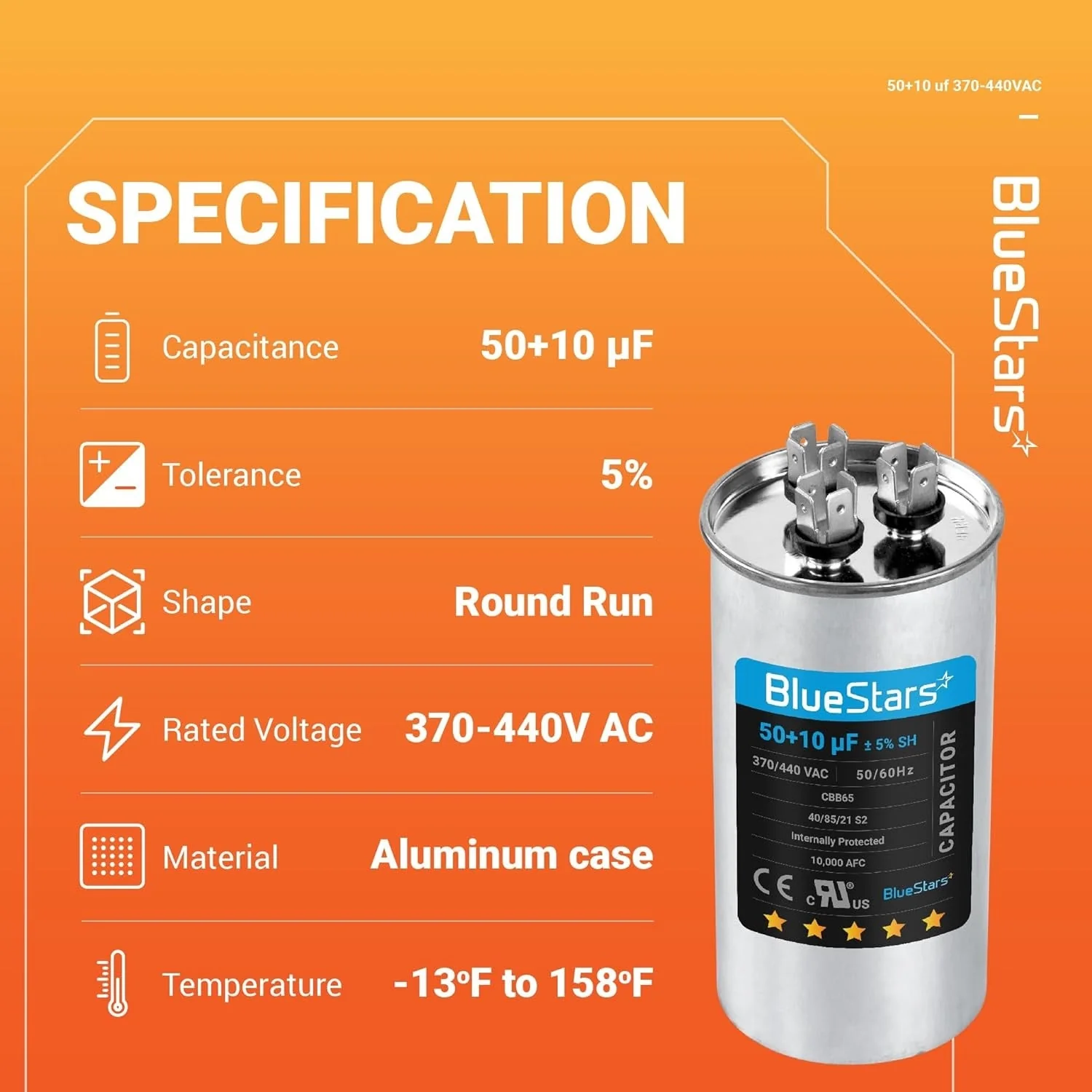

Key Features

• Capacitance: 50 + 10 Microfarad (uF/MFD)
• Voltage Rating: 370 / 440 Volts AC (VAC)
• Capacitance Tolerance: ±5%
• Operating Frequency: 50 / 60 Hz
• Shape: Round

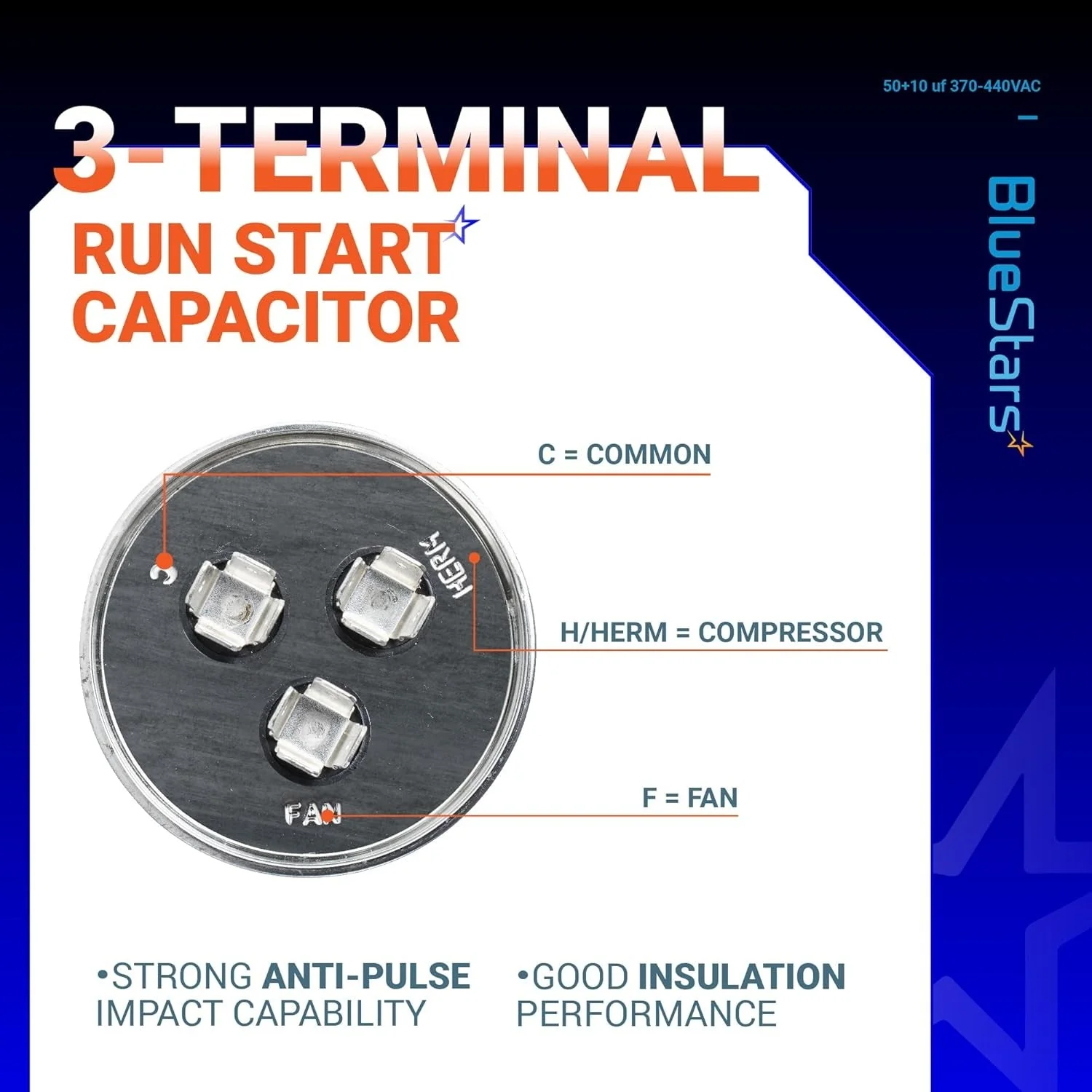

• Terminals: 3 (Common, Fan, Hermetic Compressor)
• Construction: Metal housing, oil-filled
• Operating Temperature Range: -25°C to +70°C

Replaces / Cross-Reference Part Numbers

• Directly replaces any round dual-run capacitor with identical 50+10 uF capacitance and 370V or 440V ratings.
• Compatible with capacitors in the CBB65 series.
• Cross-reference: 97F9895, Z97F995, 97F9895BZ3, 27L880, TRCD455, TRCFD455, PRCFD455, 27L889, 97F9851, 97F9851S, 12788, RC0114, Z97F9895, 97F9895, TT-CAP-45/5/440R, HC98KA046, TP-CAP-45/5/440R, CAP050450440RT, HC98JA046, HCKS450D050R440Z, 00662441180262.

Compatibility & Fitment

• Designed for starting and running single-phase AC motors.
• Commonly used in air conditioning units, heat pumps, condenser units, and furnace blower motors.
• Serves both the compressor motor (50 uF) and the fan motor (10 uF) in a single component.

When to Replace

• Motor hums but does not start.
• Fan runs slower than normal or needs a manual push to start.
• Compressor fails to engage.
• Visible signs of damage such as bulging, cracking, or leaking fluid from the capacitor case.
• Capacitance measures outside the specified tolerance range when tested.

Installation Tips

• Disconnect all power to the equipment before beginning work.
• Safely discharge the existing capacitor by shorting across the terminals with an insulated tool.
• Verify that the voltage and microfarad (uF) ratings match the original capacitor.
• Note the wire placement on the old capacitor's terminals (C, FAN, HERM) before disconnecting.
• Ensure all wire connections are secure before restoring power.
